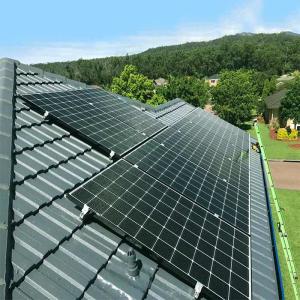

Tile Roof Solar Mountings And Photovoltaic System For Solar Rooftop
Support
Brief Description:
Metal roof mounting system is designed with great flexibility for
both commercial and residential roof solar system. It is suitable for steel roofs from 10 degrees to 60 degrees. To
simplify the brackets mounting, we have designed rails that can put into clamp fixture block easily.
—Min.Order Quantity: 5 Set
—Supply Ability: 50000 Set/Sets per Month
—Port: Tianjin, Shanghai, Qingdao
—Payment Terms: L/C,D/A,D/P,T/T
Product Feature:
► Special design different kinds of clamp components according to different glazed tile;
► With few kinds of spare parts, convenient to install;
► Adopts high strength aluminum alloy and stainless steel, working
life is 25 years.
Product Parameter :
| Type | Ground solar mounting |
| Color | Natural or Customized |
| Treatment | Anodized, Galvanized |
| Structural materials | Aluminum Alloy, Hot-Galvanized Steel, Stainless Steel |
| Install Angle | 0-60 degree |
| Ground Clearance | ≥0.15m |
| Max Building Height | 20 m |
| Wind load | 130mph(60m/s) |
| Snow Load | 30psf(1.4kN/m2) |
| Applicable Module | Framed, frame-less |
| Module Orientation | Portrait, landscape |
| Array Layout | According to the actual situation |
| Warranty | 10 years |
| Duration | More than 25 years |
Clamp series
Certificates:
Packaging & Shipping:
► Payment Terms: L/C,D/A,D/P,T/T
► Place of loading: Basic Seaport, China
► Delivery Detail: Delivery time:7--25 days after receiving
customer’s deposits
► Packaging Detail: Export Standard Carton With Pallet,
interleaving each profile to protect the surface
