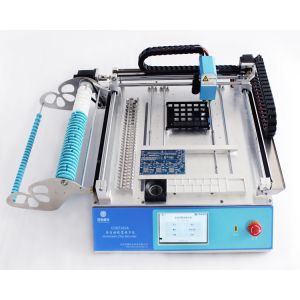

    All In One CHMT48VA Benchtop SMT Pick And Place Machine Embedded Linux System

    All-in-one , in- build industrial Linux system computer, Double vision camera CCD System

    CHM-T48VA Desktop SMT Pick And Place Machine PNP Machine​

    110v 220V English Version CE certificate

    Directly purcahse link from Aliexpress store:

    https://www.aliexpress.com/item/32502909690.html?spm=2114.12010612.8148356.5.2d2032dcu4dcYa


    PayPal aslo supported, our PayPal account is: sales@charmhigh-tech.com

    Payment link by PayPal:


    Please refer to the Video link as below:

    CHMT48VA working customer from Belgium :

    www.youtube.com/watch?v=HiQF7R4X3UE


    Pick and Place machine CHMT48VA placing LED:

    www.youtube.com/watch?v=-tLj0SrvEMw

    Specifications of CHMT48VA:

    Technical Parameter for

    CHMT48VA

    Dimension

    L 960mm*W 705mm*H 335mm

    PCB Area

    10*10~355*355mm

    XY Axis travel

    400*460mm

    Z axis move range

    15mm

    Pick and Place head

    2pcs

    Mounting Speed

    With vision 3000~4000cph; without vision
    6000cph-7000cph (Note: cph means chip per hour)

    Working Precision

    ±0.025mm

    Stack

    8mm=22 stack; 12mm=4 stack; 16mm=2 stack;
    24mm=1 stack; Front IC=12 stack;
    User-defined IC tray=20 stack

    Vacuum pump

    2pcs in-build (mute)

    Vision system

    Up view and down view dual cameras

    Computer system inside

    Linux system inside, very stable, no need external PC

    Software to genterate CSV file

    By Protel 99SE ; Altium Designer

    Support files

    .csv file

    Touch screen

    7’’ (15.6cm*9.3cm) industry touch screen

    Support packages

    0402,0603,0805,1206,1210,3528,5050, SO-16,SOT-23,SOT-89,TO-252,SOP,QFN, LQFP....different kinds of IC (max size 22*22mm)

    Voltage

    AC 110V/ 220V, 50/60HZ (supply the plug for your country)

    Gross weight

    73kg (with wooden box packing)


    Advantages:
    1. Convenient software, Embedded Linux System of the machine, stable industry main board, independent operation, no need external computer, operation easier and more convenient, learn fast.
    2. In-build touch screen, no need external monitor, room saved, more convenient operation, USB mouse supported as well.
    3. Top and bottom two vision cameras, correct the position of each components, you can view the vision image from screen for every components.(max component size 22*22mm)
    4. It has flexible PCB clamping fixture, suitable for different size of PCB.
    5. It supported custom IC tray, IC tray can be fixed on machine table.
    6. Two mounting heads with 2pcs Juki Nozzles, Juki nozzle inside magnet, so it can be removed by finger, no need to disassemble with wrench, nozzles rotation angle -180 degree to +180 degree.
    7. All-in-one machine, 29pcs feeders included in machine, no need to buy other parts, machine is ready to work.
    8. Z axis detection, machine's pull needle automatically return to origin to avoid nozzles broken.

    9. Max height component support 5mm.
    10. Closed-loop control, X,Y Axis with encoder, not out of step.
    11. PCB calibrated by two components position, then rest components will be calibrated automatically.
    12. With vacuum detection, with automatic feeding, if one component suck crooked, it will automatically throw it to deposit area, then pick a new one to mount again.

    13. With vision detection, camera will auto correction component angle and place on PCB board right place. If heads not picking up components, camera will detect it and go back to pick again, 3 times not picking, machine will alarm and stop, after supply material, then continue working, no need to start over again.

    14. Comes with convert tool (PC version), edit work file in computer and load work file into machine by USB port, quick and convenient.
    15. Support panelized boards.
    16. If you don't have PCB file, you can create a new work file to program in machine directly.

    17. Support single step.

    18. Support cut tapes/ bulk material/ tube material.


    Standard Accessories for CHMT48VA:
    1) Pick and Place MachineCHMT48VA: 1
    2) Juki nozzle total 4pcs (503, 504, 505, 506 size)
    3) 8G USB driver 1
    4) Power Cord 1
    5) Pull needle 2
    6) Coil for pull pin1
    7) Camera positioning adjust black board 1
    8) Hex wrench 6
    9) Tweezers 1
    10) Brush 1
    11) Pen for touch screen 1
    12) Fixture for IC tray 4
    13) Grease 1
    14) English user manual 1


    100% Real photos:


    Top and Bottom camera, make sure each component place very accurate:

    X Y axis motor with encoder, closed-loop control, make sure not lose steps:

    Cut tape also supported:

    Vibration feeder supported:

    User-defined IC Tray:

    Touch screen, USB mouse also supported:

    Juki Nozzles, very easy opearation, magnet inside, no need to use wrench to pull down:


    Packing very safe:


    Why choose Charmhigh?

    1.Light weight body,occupy small area
    2.User friendly interface,no need professional SMT engineer,entry-level device
    3.High integrated,no need extra pump or any supporting facility
    4.High accuracy and reliability,make up the defection of manual work
    5.Low cost,reduce expense to own a professional automatic SMT production line
    6.International express with door to door service,3-5 working days delivery
    7.Especial for laboratory research and development,samples,to avoid any patents and designs revealment

    Kindly note:

    The pick and place machine is complete set with all accessories included in the package,

    It is all-in-one machine, ready to use!

    You can use it when you receive it. Good after-sale tech support, please purchase it with confidence.

    Enjoy with your pick and place machine!

    Warranty:
    The complete machine has a warranty period of 1 year from the time of purchase and lifelong service.
    We always provide spare parts of machine, factory reliable direct supply.
    We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
