| Brand Name : | Trumbosound / oem |
| Model Number : | LA3212 |
| Price : | $737.00/Pieces 1-9 Pieces |






| Model No.  | LA3212 | LA221B | LA15M |
| Size  | 12 inch  | 21 inch  | 15 inch |
| Product name  | Double 12 inch line array speaker | Double 21 inch subwoofer | 15 inch monitor coaxial speaker  |
| Impedance (Ω) | LF: 8Ω, Mid : 8Ω, HF : 16Ω | 8 | 16 |
| Frequency response  | 60hz-18khz  | 26hz-120hz(-10dB) | 45hz-20khz(-10dB) |

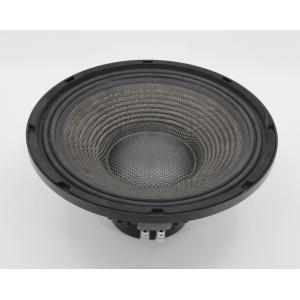

| Speaker driver  | LF: 2x12 inch with 3 inch voice coil, neo magnet and carbon
cone
            HF : 2x1.5 inch HF driver
with neodymium magnet and 3 inch voice coil

     Mid : 4x6.5 inch neo midrange speaker with carbon cone  | 2x21 inch subwoofer with 6 inch voice coil  | 1x15 inch coaxial speakers with neodymium magnet and carbon cone
.  |
| AES power handling | HF: 160W , LF: 800W , Mid: 480W | 3000W  | 500W  |
| Sensitivity (1w/1m) | HF:107dB, MID :100dB , LF:98dB | 100dB  | 100dB |
| Box material  | Wood  | Wood  | Wood  |
| SPL  | LF:130dB
                  HF:
136dB | 134dB(Con)/140dB(Peak) | 127dB(Con)/133dB(Peak) |
| Nominal coverage angle | 100°x10° | 90°x60° | |
| Dimension  | 1105x597x383mm  | 1400x900x600mm | 540x565x374mm |
| Net weight  | 65 kg  | 108 kg  | 19.7 kg |
| Gross weight  | 70 kg  | 113 kg  | 23 kg  |






|   |
