    630sqmm Multicores PVC Insulated Copper Cable For Laying Indoors

    Ask Lasest Price
    Brand Name : SHANCABLE
    Model Number : CU/PVC/PVC
    Certification : ISO,CE,IEC,TUV,KEMA
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100KM/Week
    Delivery Time : 10 Days
    • Product Details
    • Company Profile

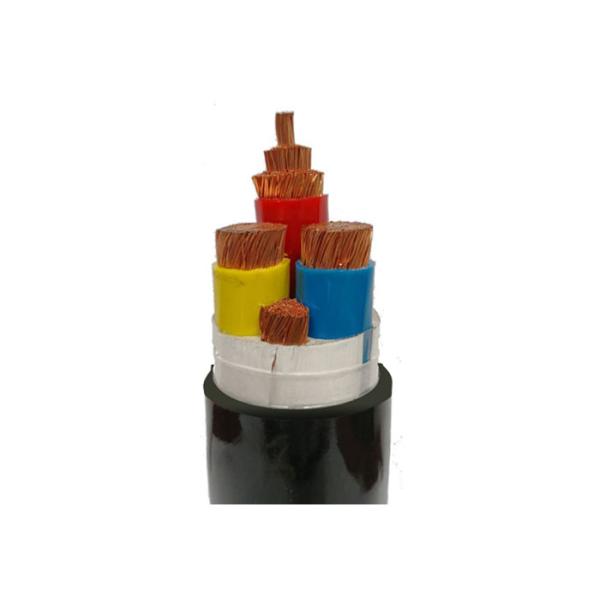

    630sqmm Multicores PVC Insulated Copper Cable For Laying Indoors

    Low Voltage Multi-Cores Pvc Electrical Cable PVC insulated<PVC sheath Cables


    The Low voltage cable can be choosed for laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.


    Construction


    Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2

    Insulation: PVC

    Sheath: PVC type ST2 to IEC 60502, Black

    Note: Insulation Color as per standards or customer requirement


    Applications


    Used for Power transmission and distribution line with voltage rated at 35kv and below.

    For laying indoors and outdoors.Able to bear certain traction during installation, but not external mechanical forces.


    Standards


    International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJV only)
    China: GB/ T 12706, (GB/T 18380-3 for ZR-YJV only)
    Other standards such as BS, DIN and ICEA upon request

    Technical data


    Rated voltage: 0.6 / 1 kV
    Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
    Min. Ambient Temp. 0℃, after installation and only when cable is in a fixed position
    Min. Bending Radius: 20 x cable O.D for single core
    15 x cable O.D for multi core
    Certificates
    CE, RoHS, CCC, KEMA and more others at request


    Electric Performance

    1.Maximum Conductor DC resistance @ 20℃, Ω/km


    Cross Section mm2CopperAluminum

    Cross Section

    mm2

    CopperAluminum
    250.7271.201850.09910.164
    350.5420.8682400.07540.125
    500.3870.6413000.06010.100
    700.2680.4434000.04700.0778
    950.1930.3205000.03660.0605
    1200.1530.2536300.02380.0469
    1500.1240.206

    2. Single phase AC 50Hz voltage test or DC voltage test:


    Rated voltage3.668.712182126
    Single phase AC 50Hz test voltage12.52130.5426373.591

    3. Partial Charge Test:


    Test voltage is 1.73U0, the partial charge should not bigger than 10PC.
