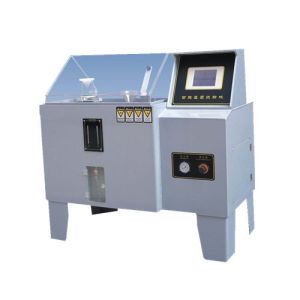

Testing Equipment Salt Spray Corrosion Test Chamber Anti Corrosion
Tester Salt Spraying Fog Environmental Test Chamber
2. Description
The salt spray tester is used to test the corrosive resistance of
products whose the surface was treated
with paint, electroplating, inorganic and organic film, anode
handling, anti-rust oil, etc.
3.Features
a. Test chamber material made of high corrosion/high
temperature/high humidity PVC
b. Seal cover made of transparency acrylic or PVC
c. It is easy to operate and maintain.
d. SUS# 304 stainless pressure air barrel
e.V-shaped and O-shaped sample shelves
f. Sample angle able to adjust freely 15°-30°
g. Salt mist distributed evenly
Spray mode: Continuous spray, cycle spray
Corresponding standard
1.GB/T 2423.17-1993 salt spray test
2.GB/T 2423.18-2000 salt spray test
3.GB/T 10125-1997 salt spray test
4.ASTM.B117-97 salt
5.JIS H8502 salt spray test
6.IEC68-2-11 salt spray test
7.IEC68-2-52 1996 salt spray test
8.GB.10587-89 salt spray test
9.CNS.4158 salt spray test
10.CNS.4159 CASS Accelerated acetic acid copper salt spray test
11.GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray
test
4. Main technical Specifications
Model | GX-3040-60 | GX-3040-90 | GX-3040-120 | GX-3040-160 |
Dimension of inside box (L×W×H) | 60×40×45cm | 90×60×50cm | 120×80×60cm | 160×100×60cm |
Dimension of outside box (W×D×H) | 103×60×107 | 146×91×128 | 220×120×145 | 260×145×155 |
SPraying mode | Continuous spray or intermittent spray (programmable) (optional) |
| Control system | Micro-computer control, PLC+touch screen input and display |
Materials of test chamber | PVC board and PP |
Testing temperature | (NSS AASS)35±1℃ (CASS)50±1℃ |
Saturated air barrel temperature | (NSS AASS)47±1℃ (CASS)63±1℃ |
Spray volume | 1.0~2.0ml 80cm2/h |
PH value | (NSS ACSS)6.5~7.2 ; (CASS)3.0~3.2
|
Testing room capacity(L): | 108 | 270 | 480 | 800 |
Power | 1∮,AC220V,15A | 1∮,AC220V,20A | 1∮,AC220V,3A |
1.How can we guarantee quality?
Our Products have passed the certification of China National
Standard System. The products have been tested according
toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has
a complete organizatinal structure and management system,through
the ISO9001 quality management system, ISO14001 environmental
management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing
equipment, footwear testing equipment, tensile testing
machine,environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
