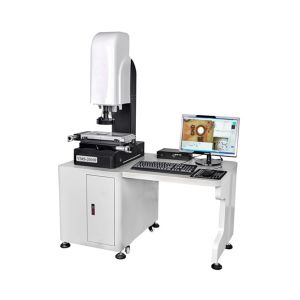

Optical Quadratic Image Tester For FPC LCD Precision Manufacturing
Product Usage:
The instrument is widely used in various precision manufacturing
industries, such as mobile phone components, molds, electronics,
communications, machinery, hardware, plastics, meters, clocks,
PCBs, LCDs and other industries. Measurable materials include
metal, plastic, rubber, glass, PCB, ceramics, etc.
This series of measurement software is a multi-function software
for automatic image measuring instrument developed by our company.
It can visualize, analyze, process and detect the coordinates of
two-dimensional measurement. It can also use probes for
three-dimensional geometric element measurement, and it can also
use lasers. The displacer measures flatness and height.
Software features:
1. Provide probe measurement function;
2. Provide various basic geometric elements for image measurement,
such as points, straight lines, circles, arcs, ellipses,
rectangles, keyways, planes, etc.;
3. Provide construction tools to measure and construct various
basic geometric elements;
4. It can output Word, Excel reports and AutoCAD files;
5. With professional SPC statistics function, effective quality
control can be carried out;
6. The software interface is intuitive, and the function operation
is simple and convenient;
7. Fully support WIN7 system and 19-inch widescreen display;
8. Support dual display and multi-language interface switching;
9 Provide Simplified Chinese, Traditional Chinese and English three
language interfaces;
Technical parameters:
1. Dimensions (mm) X/Y/Z: 550×520×950
2. Measuring range (mm) X/Y/Z: 200×100×200
3. Indication error (um): E1(x/y)=(2.5+L/100)
4. Workbench bearing capacity (kg): 25kg
5. Instrument weight (kg): 150kg 6. Optical system:
6.1 Image sensor: 1/3" color CCD industrial camera
6.2 Objective lens: American Purmis manual zoom lens
6.3 Magnification: optical magnification: 0.7-4.5×; image
magnification: 20-148×
7. Working distance (standard configuration): 90mm
8. Object field of view (standard configuration: 90mm
9. Resolution of grating ruler: 0.001mm
10. Transmission system: X.Y-axis polished rod transmission, Z-axis
T-screw transmission
11. Data processor: RS-033
12. Light source: the surface lamp adopts the LED ring cold light
source, the contour lamp is the LED transmission parallel light
source, and the brightness can be adjusted manually
13. Measurement software: INSPECT3D-M measurement software
14.Power source: AC 100~220V 50/60HZ 10A
15.Vibration<0.002g, lower than 15Hz
