099257-004G 099257-014G 099257-016D 099257-006G 099257-009D MP-C-011 Coil

099257-004G 099257-014G 099257-016D 099257-006G 099257-009D MP-C-011 Coil

A bobbin structure of an electromagnetic coil, characterized in that a bobbin body is made of a thermosetting resin, and a core for winding the winding and a terminal connecting portion extending to one side of the bobbin body are provided on the bobbin body, on the end surface of the bobbin body Set with waterproof ribs. By providing a waterproof rib on the end surface of the thermosetting resin bobbin body, the bobbin and the encapsulating layer are well combined to form a sealing structure, thereby fundamentally solving the outer encapsulation layer and the bobbin of the electromagnetic coil during injection molding. The problem of bonding, even if there is condensed water on the surface of the coil, the condensed water cannot penetrate into the coil winding through the sealing structure at the waterproof rib during the alternate heating and cooling of the coil during use, so that the coil maintains good water resistance and insulation performance.

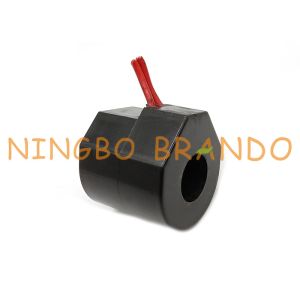

This is a MP-C-011 solenoid valve coil, coil feference number: 099257-009-D, 09257-016-D, 099257-004G, 099257-014G, 099257-006G, coil insulation class is F, coil temperature class is T, B, coil connection type is flying leads, supply 24V AC, 110V AC, 120V AC, 220V AC, 230V AC, 240V AC (50/60Hz) voltages, other voltages can be customized. It is used on Henny Penny Genuine fryer MP-944, PFE-500, PFE-500-CFA, PFE-561, PFE-591, PFE-600, PFG-500, PFG-561, PFG-600, PFG-691, CFA-500, CFA-600, Computron 7000, Computron 8000

Advantages of our pneumatic solenoid valve coil:

1. The yoke for leading magnetic field we chosen as low carbon iron

2. Encapsulation with high quality specially designed glass filled nylon

3. For use in special ambients with high humidity, please do not hesitate to contact with us.

4. We use heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material

Dimension & Data of MP-C-011 solenoid valve coil:

Brando factory production of solenoid valve coil:

More Solenoid Valve Coil for you to choose:

*Connector Options: DIN 43650 Form A, DIN 43650 Form B, DIN 43650 Form C, Wire Leads, DEUTSCH, AMP, KOSTAL .......

*Application Options: Pneumatic Solenoid Valve Coil, Refrigeration Solenoid Valve Coil, Pulse Solenoid Valve Coil, Hydraulic Solenoid Valve Coil, Solenoid Coil For Excavator / Truck / Auto, Injector Rail Solenoid Coil, Solenoid Coil For Home Appliances, LPG CNG Solenoid Coil.........

*Hole Diameter Options: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

* Since the company's inception, we are dedicated to providing high quality products and service to our customers. With focusing on our customers' demands, at before production we discuss technical points according to applications with customers to reduce mistake and save cost for both sides. During production, we use high precision CNC machine, machining center to control dimensions and improve productivity. At beginning and mid of machining, our senior inspectors check quality regularly by recording data on documents as per ISO9001 management system. Before shipment, our staff make testing and complete inspection one piece by one piece to ensure the products without defect when reached our customer's hands.

* Ningbo Brando Hardware Co., Ltd will offer you best service with fast response, let's make the fluid control application more widely and smartly.
