Grass green /computer white Coil coating line

Grass green /computer white Coil coating line

Description

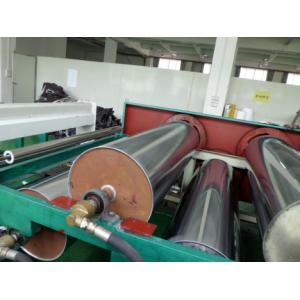

Coil coating line can solve a variety of common problems in coil processing. Before coating the anti-corrosion layer, the coil is finely purified, which can replace the wet chemical cleaning process that pollutes the environment. Surface treatment and coating equipment plus cooling and drying technology equipment form a complete set of fully automatic assembly line processing and production. The speed of the entire coil coating line is nearly four times faster than the traditional segmented processing speed. It is a coating production line with high efficiency and production efficiency. The company is responsible for complete equipment engineering, including coil conveying device and application research and development.

Technical Parameters

Model OSM-RY-1320F
Specification length 3000mm*width 1930mm*height 1680mm
Drive roller φ400 steel roller with hard coating on the surface Length: 1500mm Quantity: 4
Transmission bearing adopts Swedish SKF bearing transmission
Motor adopts 4 Taiwan Shengbang motors 2.2kw
Electrical part Contactor: Schneider, switch indicator: Izumi, Japan
Power supply 380V50HZ three-phase five-wire system
The frame material is welded with 100mm*50mm channel steel, and the surface is sprayed with plastic.
Rotary joint adopts Feiyang brand rotary joint
Heat conduction oil pipe 1 inch high pressure heat conduction oil pipe, surface covered with steel wire sheath
Burner Uses 300,000 kcal of biological particle burner, and two heat conduction oil pipes are heated
Working height 1260mm±50mm from the ground
Conveying direction from right to left
Inverter 4 sets of 2.2kw Delta inverters are used to control the roller conveying speed

FAQ

Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.

Company Profile

Dongguan Osmanuv Mechanical Equipment Co., Ltd. is a design, research, development, manufacturing as one of the UV equipment, UV equipment and coating, infrared IR equipment, professional production enterprises, automation equipment, environmental equipment, the implementation of the whole plant export.

At present, the company produces the product variety is complete, has been widely used in external wall insulation integration, inner wall decorative plate plastic spraying, bamboo and wood coating, screen printing, PCB, LCD, LED, electronic components, shoe materials, glass products, adhesive, fiber, vacuum plating UV, water transfer printing and many other fields of industry, and has been praised by customers.

Since its start has been the spirit of "high-tech, high investment, high-quality, high-management" of the modern strategy for your business to provide the best, the best service is our aim and the supreme glory, let us cooperate to carry to create more high-quality products, which all sectors of society to create a better future!

Company has passed ISO9001: 2015 quality management system certification.
