    800-2700MHz N Female RF Cavity Combiner Aluminum Alloy

    Ask Lasest Price
    Brand Name : VBE
    Model Number : VBE-C2GD
    Supply Ability : 100000pcs per month
    Delivery Time : 5 to 10 working days
    • Product Details
    • Company Profile

    800-2700MHz N Female RF Cavity Combiner Aluminum Alloy

    RF Cavity Combiner 800-2700MHz


    Features:

    Low insertion loss, high isolation, reliable, suitable for the microwave mobile communication system.

    Specific parameters can be designed according to user's requirements.


    Applications:

    Mobile Communication Network Optimization and indoor distribution system.


    Technical Specifications:

    ItemsGSM+DCSGSM+WCDMADCS+WCDMAGSM+DCS+WCDMA
    Model NO.VBE-C2GDVBE-C2GWVBE-C2DWVBE-C3GDW
    Frequency Range ( MHz)available upon request
    Insertion Loss( dB)0.30.30.80.4/0.8/0.8
    Isolation( dB)≥80≥90≥80≥80
    Inter-modulation≥140dBc(+43dBm*2)
    V.S.W.R≤1.25
    Impedance (Ω)50
    Power Handling( W)100
    RF ConnectorN-Female
    Operating Temperature-35 ºC~+60 ºC
    Dimension (mm)152*94*33152x94*32176*142*42210*142*42
    Weight( Kg)0.80.781.21.4
    Housing materialAluminum Alloy

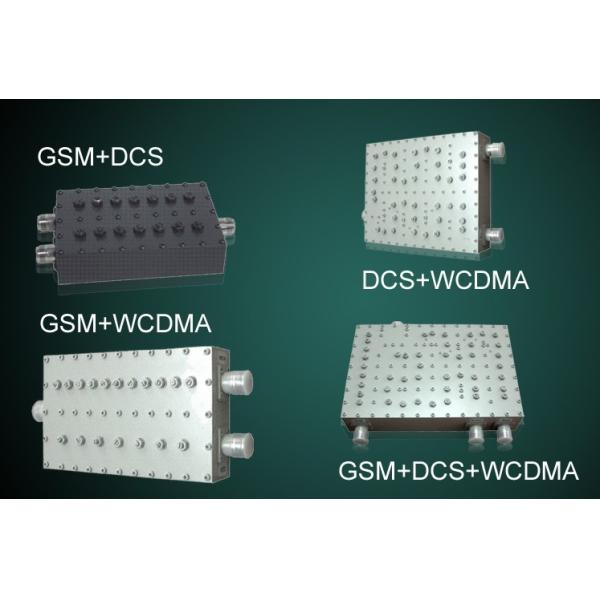

    Pics:

    Quality 800-2700MHz N Female RF Cavity Combiner Aluminum Alloy for sale
