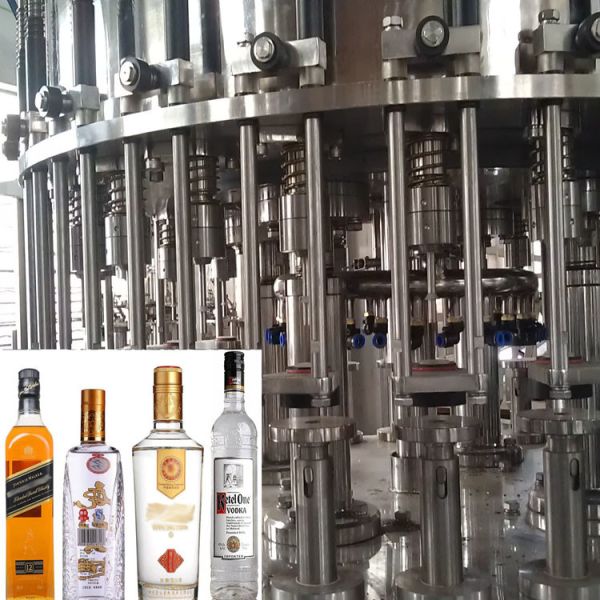

Whisky Filling Capping Machine Stainless Steel CE certification
Whisky is a kind of strong distilled liquor brewed from barley and
other grains, aged in oak barrels for many years, and then blended
into about 43 degrees. The British call it "the water of life.".
According to the origin, it can be divided into four categories:
Scotch whisky, Irish whisky, American whisky and Canadian whisky.
The BRGF series alcoholic beverage filling machine mainly used in
glass bottle packing whisky filling.
It is widely used in alcohol such as wine ,Vodka , Whisky,
Agave,vinegar etc. The lid can be crown cap or aluminium screw-cap,
plastic cap etc.,
In the filling section, Bottle upgrade system can be constructed as
mechanical mode or pneumatic mode, and the pre-holding parts ensure
bottles run smoothly.
Whisky Filling machine is one of the main equipment of alcoholic
beverage filling production. It is based on advanced technology
abroad, and is based on the characteristics of whisky (viscosity,
alcohol, etc.) for automatic production of machinery. It can save a
lot of manpower and material resources. Automatic filling of brandy
is realized.
The whisky filling machine is made of stainless steel body, with
compact structure, perfect control system, convenient operation and
high automation. All parts contacted with the material are made of
high quality stainless steel without process dead angle and easy to
clean. The high speed filling valve is adopted, the liquid level is
accurate and liquid loss, and the filling process requirements are
ensured. The control system has the functions of production speed
control, lack of cover detection, bottle clamping self stop and
output counting.
1. The whisky filling machine adopts special filling valve and
high-power vacuum pump, and the liquid level is consistent after
packaging and filling.
2. When filling the bottle mouth, the whisky flows down the bottle
wall. It effectively controls the foam caused by the liquid impact
during filling and prevents liquid overflow.
3. The whisky filling machine has the advantages of variable
frequency speed regulation, fast filling speed, overload protection
device, bottle clamping stop, soft start and elastic bottle
supporting device, which can reduce the damage of bottles.
4. The whisky filling volume is adjusted by adding and subtracting
the gasket on the filling valve, which is convenient and fast.
5. The whisky filling range of the machine is large, and the
filling volume can be adjusted in 100-1500 ml.
6. Applicable to a wide range of whisky bottle height, can be
adjusted between 100-380mm.
7. The main sealing parts are made of imported silica gel, and the
main parts are made of 304 stainless steel meeting the requirements
of food hygiene.
8. The filling valve is easy to disassemble and clean.
Classification of Whisky filling machine: according to the degree
of automation, it is divided into automatic Whisky filling machine
and semi automatic brandy filling machine.
According to the type of whisky filling machine, it can be divided
into linear whisky filling machine and rotary whisky filling
machine.
This machine is suitable for filling various kinds of whisky and
other alcoholic beverage. It can continuously adjust the filling
capacity continuously. The figures are displayed, no bottle or no
filling, and it is equipped with soft support mechanism. It is not
easy to break (this machine has two types of manual and electric
adjustment).
| Production efficiency: | 1000-5500 bottles / h |
| Filling volume: | 150-750ml |
| Filling accuracy: | ± 1% |
| Number of filling machine heads: | 24 |
| Motor power: | 1.5kw |
| Voltage: | 380V |
| Dimension: | 1400x1300x2000mm |
| |
1. Plant Included:
1) Bottle washing machine;
2) Bottle alcohol filling machine;
3) Bottle capping machine;
4) Labeling machine;
5) Packing machine;
6) Conveyor.
2. Production Capacity (500ml bottle):
1) from 3000 to 4000 bottles per hour
3. Please tell us below information then we can quote you:
1) Bottle volume;
2) How many bottles per hour you want?
4. We can provide you:
- Machine suggestion
- Special machine design according to your inquiry
- Stable quality machine
- Labeling
- carton case
- Machine testing in your factory
- Training
P.S-We provide glass bottle alcoholic beverage filling capping
2-in-1 machine and glass bottle rinisng alcoholic beverage filling
capping 3-in-1 machine.
