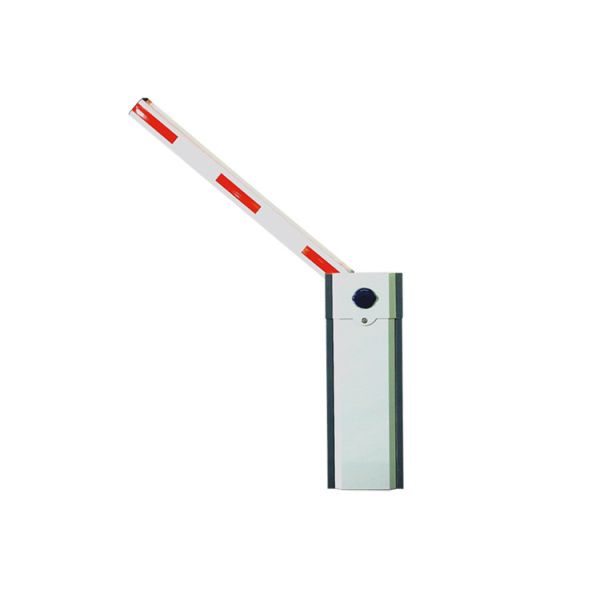

Electric Security Toll Systems AC Motor Automatic Parking Gate
Barrier
BG-101 Electric Security Traffic Barrier Gate Durable Selling
Points:
Accurate and safe Operation
Reverse on Obstacle detection
Anodized aluminum boom
Slow down speed adjustable
Compact control unit
Versatile configuration options
Silent and Smooth Operations
Automatic Fault Detection
Rapid openings and intensive use
Break Away Arm mechanism available
Electric Security Traffic Barrier Gate Durable Features:
- Intelligent.Auto-detect opening and a closing position in high
accuracy by both mechanical and electrical limit detector.
Combination of special inner working design and smart motor ensures
swift and smooth arm movement in falling and lifting to reduce
bouching.
- Durable: Extension spring is more durable than compressed spring in
the heavy-duty site where barrier gate will open and close
continuously.AC motor can support long-lasting working of barrier
gates. Cooling Fan processor is for decreasing working temperature.
- Safe: Arm will be reverse back when it meets any obstacle in its
movement. Optional rubber arm can avoid any damage when arm touches
anything. Additional photobeam further ensures safety.
- User-friendly: Interfaces for photocell, loop detector, arm light,
etc are reserved. No need to change spring if the arm is
changed(Eg.Arm is changed from 3m to 6m, the same spring can
support.)
Product Application
The SN-BG10X serial barrier gate, which manufactured by our
company, adopt the latest automatic technology and intelligent
design ahead in this field. Meanwhile our barrier gates have the
advanced design, such as humanization clutch device, balance
device(e.g), which makes our barrier gate work more safely and
conveniently. This barrier gate is suitable for indoor as well as
outdoor parking area, Parking lots, toll gate, goods yard, railway
crossing, commercial premises, apartment block access shopping
malls, hospitals, stadiums, business centers,etc.
Production Series
| Model No. | Open/Close Speed | Max Boom Length | Boom Type |
| BG101-16 | 6 seconds | 6m | straight boom |
| BG101-13 | 3 seconds | 4.5m | straight boom |
| BG101-11 | 1 seconds | 3m | straight boom |
| BG101-26 | 6 seconds | 5m | 90 degree, Articulated boom |
| BG101-23 | 3 seconds | 3m | 90 degree, Articulated boom |
| BG101-36 | 6 seconds | 5m | 180 degree, Articulated boom |
| BG101-33 | 3 seconds | 3m | 180 degree, Articulated boom |
| BG101-46 | 6 seconds | 4.5m | Two-level, fence boom |
| BG101-56 | 6 seconds | 4m | Three-level, fence boom |
TECHNICIAL SPECIFICATION
| RS485 Boom Barrier Gate For Parking Lot System |
| Model | SN-BG101 | | Size | 329*301*954 mm | | Voltage | AC 220V/110V±10%, 50/60HZ | | Rated Power | 120W | | Operation time | 1s, 1.8s, 3s,6s | | Working Temperature | -40℃~+75℃ | | Material | Cold roll plate, 2.0mm thickness sheet | | Spring And Bearing | Heat Treatment: more durable, more than 5 million times through
operation testing | Remote Control Distance | Usually more than 30 meters, if there is less obstacles, even 50
meters or more | | Delivery | Courier/ Air/Sea, depends on order quantity |
|
Packaging
| Size | 102 (L) * 37(W) * 47 (D) |
| Gross Weight | 60 KG |
| Packaging Details | The normal package is paper carton (Size: 102*37*47 cm). Wooden box
or pallet are available (need to charge) |
Our Service
| Pyment Term | Leading Time | Minimum Order | Supply Ability | Package |
| T/T; West Union | 5-7 working days | 1 Unit | 1,000 Unit/ Month | Carton or Wooden Box |
FAQ:
Q: What's the monthly production capacity for barrier gate?
A: 1000 units.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if
not, please adjust the Limit Switch. Please refer to last page of
Barrier Gate Manual. Or you can adjust the adjusting screw. And the
last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of 418 remote control can cover 100 meters, but
it is not safe and stable to control the barrier gate from 100
meters away. WE recommends using the remote control within 30
meters or 50 meters.
