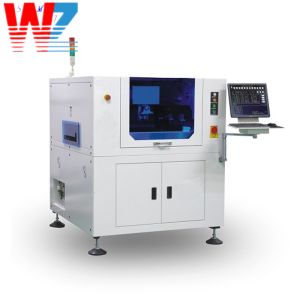

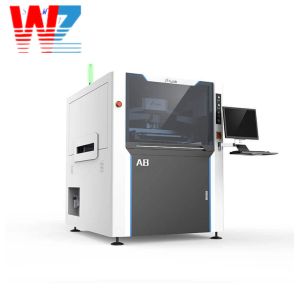

SMT Automatic PCB Solder Paste Printing Machine

    Buy cheap SMT Automatic PCB Solder Paste Printing Machine from wholesalers

    Buy cheap SMT Automatic PCB Solder Paste Printing Machine from wholesalers
    • Buy cheap SMT Automatic PCB Solder Paste Printing Machine from wholesalers
    • Buy cheap SMT Automatic PCB Solder Paste Printing Machine from wholesalers

    SMT Automatic PCB Solder Paste Printing Machine

    Ask Lasest Price
    Brand Name : ODM
    Model Number : automatic
    Supply Ability : 10 Piece/Pieces per Week
    Price : Negotiable
    Payment Terms : T/T,Western Union,Paypal,Credit card
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    SMT Automatic PCB Solder Paste Printing Machine

    SMT Automatic PCB Solder Paste Printing Machine

    Name: Automatic PCB Solder Paste Printer

    Brand: ODM

    Model: Automatic PCB Solder Paste Printer

    Specification: Automatic PCB Solder Paste Printer

    Condition: original/copy

    Quality: top qualiy

    Stock: large

    Payment: L/C T/T D/P Western Union Paypal Money Gram And Others

    Shipment: In three days

    Warranty: 1 year

    Delivery: fedex,ups,dhl,as required

    Package: carton box with foam protect

    ItemModelA8
    Screen FramesMin Size470X370mm
    Max Size737X737mm
    Thickness25~40mm
    PCB Min Size50X50mm
    PCB Max Size460X340mm
    PCB Thickness0.4~6mm
    PCB Warpage<1%
    Transport Height900±40mm
    Transport DirectionLeft-Right;Right-Left;Left-Left;Right-Right
    Transport SpeedMax 1500mm/S Programmable
    Board Location
    PCB的定位
    Support SystemMagnetic Pin/Up-down table adjusted/supportblock
    Clamping Systemside clamping,vacuum nozzle,
    Print headTwo independent motorised printheads
    Squeegee Speed6~200mm/sec
    Squeegee Pressure0~15Kg
    Squeegee Angle60°/55°/45°
    Squeegee TypeStainless steel(Standard), plastic
    Stencil Separation Speed0.1~20mm/sec Programmable
    Cleaning SystemDry,Wet,Vacuum (Programmable)
    Table Adjustment rangesX:±10mm;Y:±10mm;θ:±2°
    Machine
    Repeat Position Accuracy±0.008mm
    Printing Accuracy±0.02mm
    Cycle Time<7s (Exclude Printing & Cleaning)
    Product Changeover<5Min
    Air Required4.5~6Kg/cm2
    Power InputAC:220±10%,50/60HZ 1Φ 3KW
    Control MethodPC Control
    Machine Dimensions1220(L)X1355(W)X1500(H)mm
    Machine WeightApprox:1000Kg

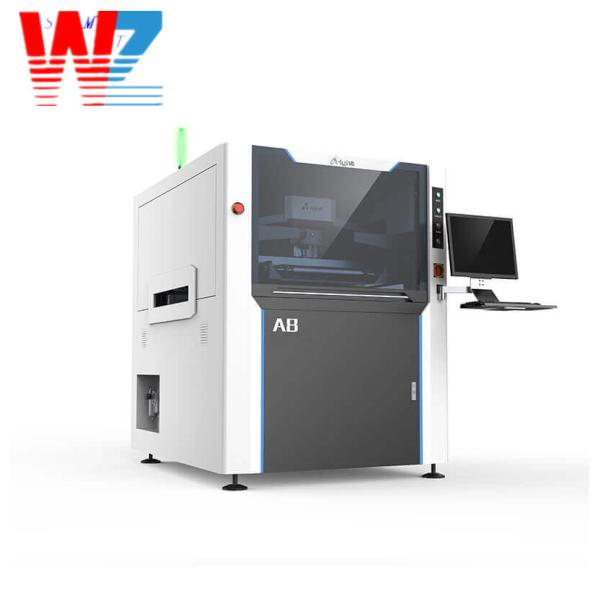

    Quality SMT Automatic PCB Solder Paste Printing Machine for sale
