YASL-19-50 50W ALUMINIUM OUTDOOR LED STREET LIGHT HOUSING IP66 IK08
Product Description
* YASL-19 family is a high-performance street light available in
three size
* Product Size:577*233*103mm
* Finish:power coating color :double grey, white, black
Product Specification
* Item No.:YASL-19-50
* Input Wattage:50W
* NW/GW:3.7/4.2kgs
* Packing Size:62*27*15.5cm
ZHSL-19 Family Product Specification
| Product Code | ZHSL-19-50 | ZHSL-19-80 | ZHSL-19-150 |
| Input Wattage | 50W | 80W | 150W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K |
| Luminous Flux | 5500-6250lm | 9200-10400lm | 17250-19500lm |
| Input Voltage | AC90-305V | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 | Ra≥70 |
| Temperature of working condition | -40-50℃ | -40-50℃ | -40-50℃ |
| Humidity of working condition | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h | 50000h |
| Protection Grade | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | Φ60mm | Φ60mm | Φ60mm |
| Installation Height | 4-6m | 6-10m | 8-12m |
| Net Weight | 3.7kgs | 6.2kgs | 7.4kgs |
| Gross Weight | 4.2kgs | 6.5kgs | 8.0kgs |
| Packing Size(mm) | 620*270*155 | 670*310*155 | 810*340*155 |
| Product Size(mm) | 577*233*103 | 627*271*103 | 768*301*104
|

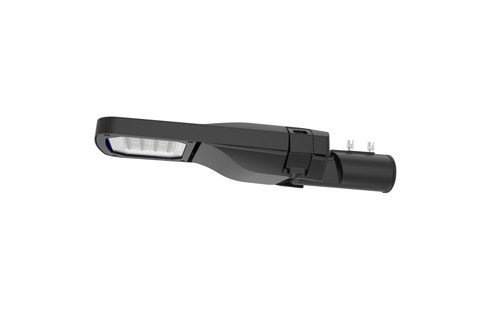

Product Picture
Line Drawing
Equipment
FAQ:
A: Are manufacturing work instructions available at working area?
B: yes.our technical department will make a instruction for all of
our models. and it will stick on the machines when they produce the
model.
A:can we change the hole position in housing?
B: of course you can.
A:can we watch the painting workshop?
B:due to the time is 7pm in China.the workers got off work.we will
show you next time. please pay attention to our Live.
A: let us introduce the painting workshop simply?
B: sure...
A: what are the procedures of painting will we do?
B: we will polish the die casting part firstly. remove the burrs
and make the surface smoothly. then keep the parts in oven for
15minutes under 185 degree to make it solidify. then the workers
will spray powder on it and hung it on spray line.
A: what colors can we choose?
B: gray.black and silver is our regular color. you can choose any
other color.but there might have MOQ requirement.
Why choose us
1. Die-casting Man has more than 21 years experience in
manufactuering the outdoor lighting.
2. We have our own die-casting machine,CNC machine,spray
line,assembling line.In this way,will be easy to control the
quality.
3. And we also have our own tooling shop and develop department,can
help customer develop their own products.
