    Duplex LC Optical Fiber Jumper

    Ask Lasest Price
    Brand Name : YT
    Certification : ISO, SGS, ROHS
    Price : Negotiation
    Delivery Time : 3-7days
    Payment Terms : XTransfer T/T, Western Union, PayPal
    Supply Ability : 5000 pcs/Month
    • Product Details
    • Company Profile

    Duplex LC Optical Fiber Jumper

    Durable Simplex / Duplex LC Fiber Optical Patch Cord , PVC / LSZH Sheath

    Product description

    ★ Jacket material:OFNR,LSZH ,OFNP
    ★ Fiber patch cord structure:Simplex,Duplex,Bunch type,Ribbon type.
    ★ Connectors:¢0.9mm,¢2.0mm,¢3.0mm
    ★ Compatible with ROHS


    Technical parameter


    CharacteristicSM , MM
    Connector typeFC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
    Diameter(mm)0.9,2.0,3.0
    Polishing gradeSM PCMM PCUPCAPC
    Insertion loss≤0.3dB≤0.3dB≤0.2dB≤0.3dB
    Return loss≥40dB≥50dB≥65dB
    Interchangeability≤0.2dB
    Repeatability≤0.2dB
    Operation temperature-40~+80

    Fiber Type

    ★ Optional Fiber Cable can choose from:OS2,OM2,OM1,OM3,OM4

    Packaging

    ★ Polybags packing for each
    ★ Packing with label

    Technical Specifications

    ★ Insertion Loss Rate Compatible with IEC 61300-3-4
    ★ Return Loss Rate Compatible with IEC 61300-3-6
    ★ End face Geometrical size
    UPCcurvityradius :10 ~ 25mm APC curvityradius:5 ~ 12mm
    Apex offset:0 ~ 50um Apex offset:0 ~ 50um
    Fiber dent:+50 ~ -100 Fiber dent:+50 ~ -100

    Environmental Technical Requirements/ PRODUCT

    Transport & Storage environment: -40ºCto+85ºC
    Operation environment: -20ºCto+75ºC

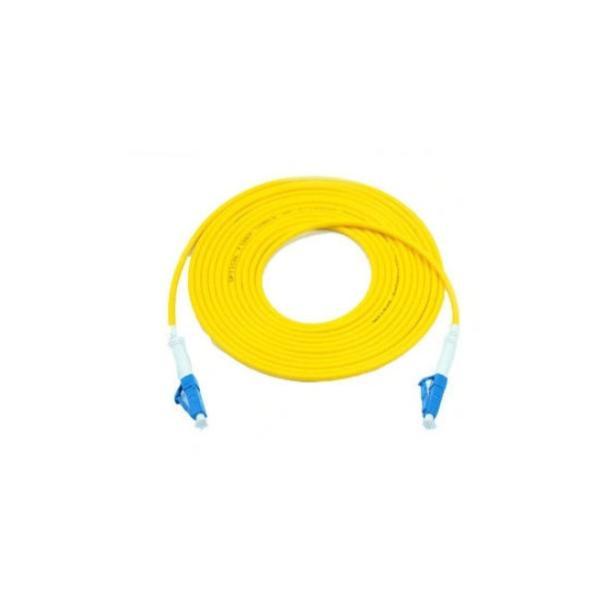

    Quality Duplex LC Optical Fiber Jumper for sale
