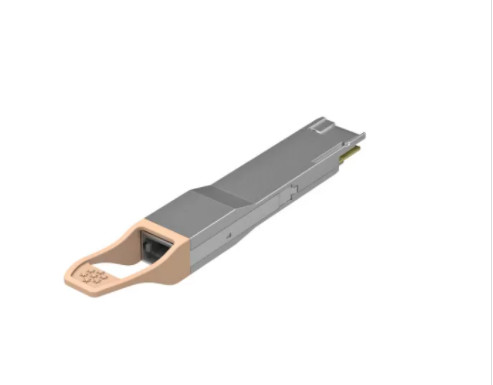

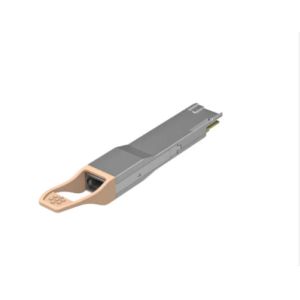

    Network 400G Optical Fiber Module 10KM CWDM QSFP Optical Transceiver

    Ask Lasest Price
    Brand Name : YT
    Model Number : YT-SFP LR
    Certification : ISO, SGS, ROHS
    Price : Negotiation
    Payment Terms : XTransfer T/T, Western Union, PayPal
    Supply Ability : 5000 pcs/Month
    Delivery Time : 3-7days
    • Product Details
    • Company Profile

    Network 400G Optical Fiber Module 10KM CWDM QSFP Optical Transceiver

    Network Fiber Optic SFP Module 400G 10KM CWDM QSFP For Big Data Centre


    Designed for 2x 200G Ethernet 200GBASE-SR4 links over multiple multimode fibers, the Gigalight 400G QSFP-DD SR8 optical module (GQD-MPO401-SR8CA) supports transmission distance up to 100m using 850nm wavelengths.


    Absolute Maximum Ratings

    It has to be noted that the operation in excess of any individual absolute maximum ratings might cause permanent damage to this module.

    ParameterSymbolMinMaxUnitNotes
    Storage TemperatureTS-4085oC
    Power Supply VoltageVCC-0.34.0V
    Relative Humidity (non-condensation)RH595%
    Damage ThresholdTHd5.0dBm

    Recommended Operating Conditions and Power Supply Requirements

    ParameterSymbolMinTypicalMaxUnitNotes
    Operating Case TemperatureTOP070oCcommercial
    Power Supply VoltageVCC3.1353.33.465V
    Data Rate100Gb/s
    Control Input Voltage High2VccV
    Control Input Voltage Low00.8V
    Link Distance (SMF)D10km9/125um

    Features

    ● 8 channels full-duplex transceiver modules
    ● Transmission data rate up to 53Gbps per channel
    ● 8x53Gbps PAM4 transmitter and PAM4 receiver
    ● 8 channels 850nm VCSEL array
    ● 8 channels PIN photo detector array
    ● Internal CDR circuits on both receiver and transmitter channels
    ● Power consumption < 9W (Gen 1), < 7W (Gen 2)
    ● Hot-pluggable QSFP-DD form factor and compliant with CMIS
    ● Maximum link length of 70m on OM3 Multi-Mode Fiber (MMF) and 100m on OM4 MMF with FEC
    ● MPO24 connector receptacle
    ● Operating case temperature range 0°C to +70°C
