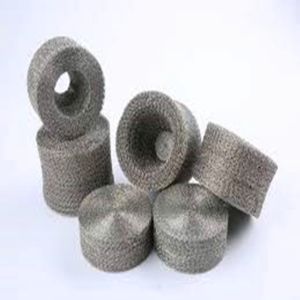

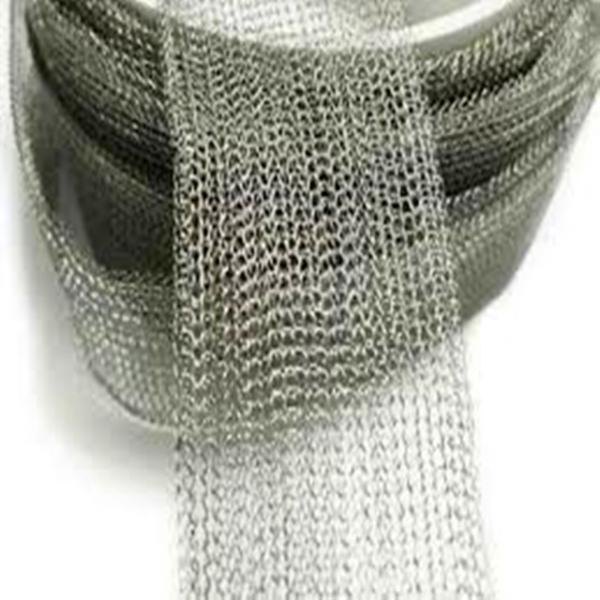

double layer all-metal EMI RF shielding wire mesh gasket
EMI / RFI shielding mesh is split into two categories - optical
grade and non-optical grade. Optical grade material is used in
windows, display screens etc. The mesh is laminated between various
substrates and adhesives in a clean room to prevent any
contamination. Optical grade material must be highly transparent,
non-reflective and homogenous – as the eye is quickly drawn to any
irregularities. In order to reduce reflectiveness, the mesh is
often blackened. This is not to be confused with mesh for an
optical filter. Optical filters filter out light of different
wavelengths.
- Brass wire: copper 65%,zinc35%
- Purple copper wire: copper 99.8%
- Phosphorus copper wire :copper 85%-90%,tin 5%-15%
| Product Features |

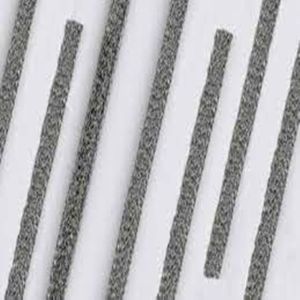

| All mesh gasket’s cross section are rectangular, round,round with
tail and double round with tail. |
Materials are available intin-plated phosphor
bronze (Sn/Ph/Bz), tin-plated copper-clad steel (Sn/Cu/Fe),
silver-plated brass (Ag/Brass), Monel, and aluminum(Al). |
| Elastomeric core has various function(anti-chemistry, thermal
resistance and water proof) for elasticity. |
| Selection shape |
| Solid Round Type |
| Solid Rectangular Type |
| Hollow Round Type |
| Solid Round with Fin Type |
| Hollow Round with Fin Type |
| Mesh/inch | Wire dia(mm/inch) | Aperture(mm) |
Stainless steel wire mesh | 100 | 0.089/0.0035 | 0.17 |
| 110 | 0.1060/0.0040 | 0.1295 |
| 120 | 0.0904/0.0037 | 0.1168 |
| 150 | 0.0660/0.0026 | 0.1041 |
| 160 | 0.0635/0.0025 | 0.0965 |
| 180 | 0.0584/0.0023 | 0.0838 |
| 200 | 0.0533/0.0021 | 0.737 |
Production range:
- Width: Standard 1M, Special requirement is accepted.
- Length:30M/roll
- Size:Standard 60/100/150 mesh/inch
- Faraday cage shielding stainless steel wire mesh
Product Description
• Material: SUS302,201, 304, 304L, 316, 316L, 310, 310S etc
• Weave: plain, twill, dutch
• Mesh: 1-2800 mesh
• Application: EMI/RFI shielding, Faraday cages, RF window,
• Specification list for faraday cage shielding stainless steel
wire mesh
