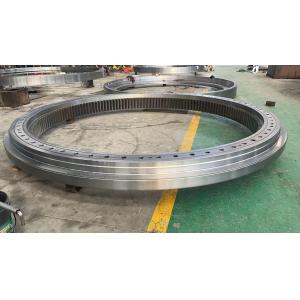

Slewing bearing contains the outer ring, inner ring, rolling elements, seals, grease nipples, etc. Our
product materials are generally high alloy structures steel, such
as 42CrMo 50Mn. Slewing ring can work normally at a temperature of
50 ° C
-30 ° C to + 70 ° C, we can design special types according to
customer needs
| Type | Single row four point contact ball slewing bearing
Single row crossed cylindrical roller slewing bearings Double row crossed cylindrical roller slewing bearings Double row ball slewing bearings
Double row Roller/ball combination slewing bearing
Three-Row Roller Slew Ring Bearing Wind power bearings Non-standard customized slewing bearing with inner/ outer gear |
| Rollng elements | Steel ball / Cylinder Roller |
| Bearing Material | 50Mn/42CrMo/42CrMo4V /Customized |
| Cage Material | Nylon/ steel /copper |
| Structure | taper pin, Mounting holes, Inner ring, grease fitting, load plug,
seals, roller, spacer balls or separators |
| Outer diameter | 50-10000mm |
| Bore size | 50-10000mm |
| Mounting hole | Through hole/Tapped hole |
| Raceway hardness | 55-62HRC |
Inner and outer ring
modulation hardness | 229-269HB/Customized |
| Gear type | No gear, Internal gear, External gear |
| Certificate | SGS, ISO9001 |
Application area | Ladle turret, Stacker crane, Bucket wheel machine, Solar heliostat
Tracking System, port crane, Cabling machine, tower crane, offshore
platform, ferris wheel, Palletizing robot, Rotary metallurgical
furnace, can packing machine, Wind blade transporter, shield
tunneling machine, tube push bench, excavator |
Application fields of the our slewing bearings:
The turntable bearing produced by our company is used in dock fixed
crane, Marine floating crane, gantry crane, ladle rotary table,
bucket wheel stacker and reclaimer, circular stacker and reclaimer,
crawler crane, ferris wheel, rotary test bench, segment erector,
bottle blowing machine and other fields.
Performance and common models of some industries:
1. Port machinery equipment: main equipment includes wharf fixed
crane, Marine floating crane, gantry crane, loader, ship unloader,
main supporting models:131.45.2240, 131.45.2500, 131.45.2800,
131.50.3150, 132.50.3550, 132.50.4000, 132.50.4500, 132.60.4500,
132.50.5000, 022.50.2240,021.50.2500, 022.50.2800, 012.60.2240,
012.60.2500, 012.60.2800, 011.75.3150, 011.75.3550.
2. Ladle rotary table: Main supporting models:131.45.2500,
131.45.2800, 131.50.3150, 132.50.3550, 132.50.4000, 5397/3370,
6397/4246, 6397/4016, 6397/3340, 132.40.3582.
3. Bucket wheel stacker and reclaimer: Main supporting
models:131.45.2800, 131.50.3150, 132.50.3550, 132.50.4000,
1797/2600, 1797/2635, 1797/3230, 1797/4014, 121.40.2750,
121.40.3750, 132.50.5000, 130.50.5000, 132.50.4438, 11.50.3550,
112.40.2800.
4. Circular stacker and reclaimer: Main supporting
models:022.40.1800, 022.40.1600, 010.45.1600, 010.45.1800,
010.60.2000, 131.45.2800, 1797/1914, 131.50.3150, 010.60.2800,
010.75.3150, 112.40.2000, 110.50.3150, 110.40.2800, 112.40.2800,
022.50.2500, 111.40.2800, 022.50.2000, 010.45.1400, 022.60.3150,
010.60.2500, 132.50.4000, 022.50.2240, 111.40.2800
5. Marine Crane: Main supporting models: 024.45.2890, 024.45.2895,
024.50.3250, 013.63.2900, 013.45.2875.
