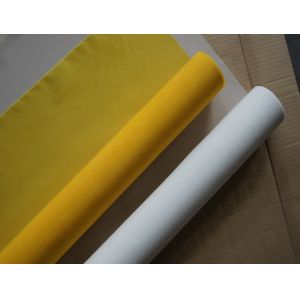

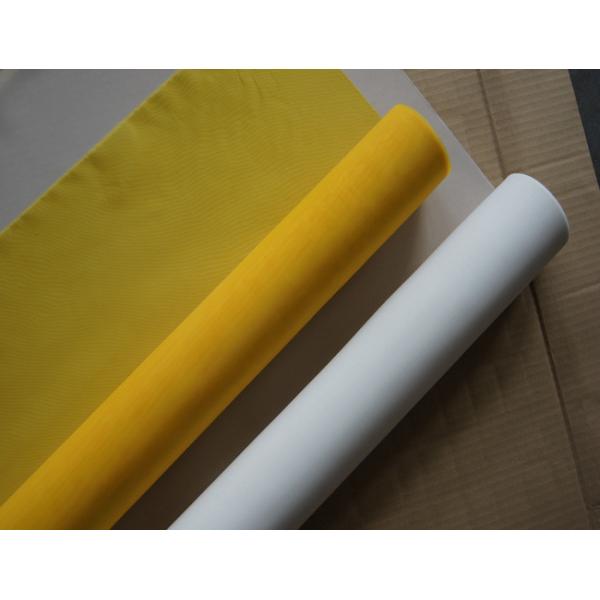

100% Polyester Printing Screen Mesh for Textile/Glass/PCB/Ceramic
Printing
Processing :
Material yarn from Jintong, Switzerland and Japan, we inspect those
yarn arrived (tolerance, tensile strength, physics test etc.).
During production, first we put the warp wires on the beam, drawing
the warp wires into heddle and reed. Then our experienced weaver
will start weaving mesh according to orders.
Initial survey is taken during and after weaving. Then the heat
setting treatment and physical properties inspection will be done
before we get tentative finished rolls (normally 60-500 meters
rolls).
In the end, after the final inspection, we will cut the mesh into
small rolls (20m-50m) according to customer orders.
Features & advantages of Bolting cloth printing mesh for printing:
1. Faster turnaround time from the screen room to the pressroom
2. Good diathermancy
3. High air permeability
4. Acid resistance and Alkali resistance
5. Long working life
6. Hard wear
7. Three factories for manufacturing
8. Imported weaving machines from Switzerland and Italy
Available Specification of silk screen mesh:
| Specification | Mesh Count | Thread Dia. | Aperture | Opening | Thickness | Theoretical Ink Volume | Tensile Strength |
| T | mesh/inch | micron | micron | % | micron | C㎡/㎡ | n/cm |
| 10-250 | 25 | 250 | 740 | 53 | 465 | 246 | 60 |
| 16-200 | 40 | 200 | 435 | 47 | 420 | 189 | 48 |
| 20-140 | 50 | 140 | 340 | 46 | 280 | 129 | 52 |
| 24-100 | 60 | 100 | 316 | 58 | 190 | 109 | 48 |
| 24-120 | 60 | 120 | 300 | 51 | 210 | 105 | 42 |
| 32-100 | 80 | 100 | 200 | 43 | 160 | 69 | 42 |
| 36-100 | 90 | 100 | 178 | 41 | 175 | 72 | 42 |
| 39-55 | 100 | 55 | 201 | 62 | 100 | 62 | 30 |
| 39-80 | 100 | 80 | 172 | 46 | 142 | 65 | 42 |
| 43-80 | 110 | 80 | 150 | 41 | 130 | 55 | 35 |
| 48-70 | 120 | 70 | 135 | 41 | 115 | 46 | 32 |
| 53-55 | 135 | 55 | 134 | 50 | 105 | 53 | 34 |
| 54-64 | 137 | 64 | 115 | 39 | 102 | 40 | 30 |
| 59-55 | 150 | 55 | 100 | 40 | 93 | 39 | 32 |
| 64-55 | 160 | 55 | 101 | 42 | 105 | 44 | 30 |
| 64-64 | 160 | 64 | 90 | 32 | 106 | 34 | 35 |
| 72-48 | 180 | 48 | 94 | 46 | 80 | 37 | 32 |
| 72-55 | 180 | 55 | 75 | 29 | 92 | 27 | 32 |
| 77-55 | 195 | 55 | 70 | 25 | 88 | 24 | 29 |
| 80-48 | 200 | 48 | 78 | 30 | 84 | 24 | 29 |
| 80-55 | 200 | 55 | 70 | 25 | 88 | 24 | 29 |
| 90-48 | 230 | 48 | 55 | 25 | 78 | 20 | 33 |
| 100-40 | 250 | 40 | 58 | 32 | 65 | 21 | 29 |
| 110-40 | 280 | 40 | 48 | 27 | 65 | 17 | 30 |
| 120-34 | 300 | 34 | 45 | 30 | 55 | 16 | 30 |
| 120-40 | 300 | 40 | 40 | 20 | 55 | 16 | 29 |
| 140-31 | 350 | 31 | 35 | 26 | 48 | 13 | 27 |
| 140-34 | 350 | 34 | 30 | 20 | 55 | 10 | 30 |
| 150-31 | 380 | 31 | 32 | 23 | 47 | 10 | 28 |
| 150-34 | 380 | 34 | 30 | 20 | 69 | 10 | 30 |
| 165-31 | 420 | 31 | 25 | 17 | 49 | 8 | 28 |
QUESTION: Why choose us?
Polyester screen printing mesh is made of high quality domestic and
imported material,
advanced weaving loops and test instrument. So this kind of
polyester printing mesh has High tensity and low elongation etc.
Characteristics
>Faster tensioning without damage to the threads
>Improved fabric strength
>Faster tension stabilization
>Higher tension threshold and breaking point
>Less tension loss during the stretching process
>Faster turnaround time from the screen room to the pressroom
>Improved registration due to stable tension
>Faster Print speeds
Our company imported the advanced polyester screen production line
in the world, including P7100—B360 projectile looms from
Switzerland.
Welcome to contact us for any inquiry of Polyester Screen Mesh.
