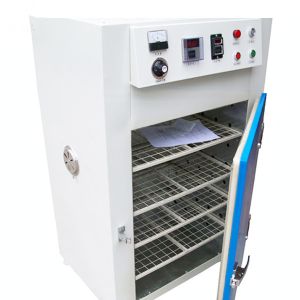

Industrial vacuum drying oven hot drying oven High Temperature
Drying Oven for Drying
Vacuum drying ove[p7n can operate at temperatures as high as 300℃ . A rugged, high
quality pressure chamber, gasket seals, and pump are features to
look for, as well as convenient, programmable controls and a
computer interface. Vacuum drying ovens are also available with
specialized features such as solvent recovery or residual gas
analysis to prevent over drying.
Main Feature of vacuum drying oven priceThe temperature controller was imported Japan, the compressor was
imported French Tecumesh.All the parts of the machine are rugged
and durable. Using high quality cold-rolled steel plate, coated
with electrostatic powder spraying; the coat is hard and firm, with
strong rust resistance.The studio is made up of high quality
stainless steel plate, which has round shape and is smooth ,fluent
and easy to clean.Full of superfine glass wool thermal insulation
material between the box and the studio,what brings good heat
preservation. That can effectively guarantee the stability and
accuracy of the temperature in the box and the influence to the
environment.
Application of vacuum oven with vacuum pumpIt is suitable for electronic, batteries, metal,
plastic,communication, chemical coatings, motorcycle accessories,
epoxy resin, cosmetics raw materials deaeration, magnetic
material,sport equipment, scientific research units, universities
and colleges, industrial and mining enterprises, laboratory,
aerospace and other filed.
Parameters
Model | YVO-072 | YVO-270 | YVO-480 | YVO600 | YVO-1000 |
Inner chamber size W×H×D(cm) | 45×40×40 | 60×90×50 | 80×100×60 | 100×100×60 | 120×100×60 |
Exterior chamber size W×H×D(cm) | 81×87×108 | 96×137×118 | 106×170×125 | 126×170×125 | 146×170×125 |
Testing temperature range | Room temperature~250℃(300℃/400℃) |
Vacuum degree | Atmospheric pressure~ 3KPa |
Performance | Temp. fluctuation | ±0.5℃ |
Temp. uniformity | ±5℃ |
Control accuracy | 0.1℃ |
Heating-up time | Room temperature~400℃<120min,
Room temperature~250℃<90min(No linear,empty load) |
|
Material | Exterior chamber material | Cold-rolled steel plate+Powder coating |
Interior chamber material | SUS#304 Stainless steel |
Insulation | PU&fiberglass wool |
System | Air circulation system | Cooling fan |
Heating system | SUS#Stainless steel high-speed heater |
Controlling system | SAMWON ST590E-00 controller |
Vacuum system | Equipped with vacuum pump |
Power supply | AC 3 phase 380V 60/50Hz |
Customization | Non-standard or special requirements are all welcome. |
Company information
BOTO Testing equipment Technology Co., Ltd is a high technology
supported production-oriented enterprise who specializes in
developing, manufacturing, marketing all kinds of environmental
equipment. Our company has advanced technology, experienced
technical management personnel and efficient professional service
staffs, fine quality management and perfect after-sales service
system.
Our company mainly produce simulated environmental tester, plastic
and rubber tester etc. on all kinds of materials testing
industries. The production base is located in the country’s
manufacturing center Dongguan, Guangdong province, China. In order
to service our customers better in terms of reducing costs and
early delivery, in 2005 we had set up an office in Kunshan, Jiangsu
province for Eastern China marketing and servicing.
BOTO deals with customers from more than 150 countries and regions.
Meanwhile, we are committed to cooperate with different dealers in
different countries and regions in order to offer better service.
Our mission is to help every customers establish testing labs to
ensure the quality of their products.
Our company will continue to develop, innovate and keep faith. We
combine with the international testing standards and the specific
demands of customers that may establish a new banner in Chinese
testing industry.
Production Details
Factory Inspection
We control quality from the materials, electronic parts,
controller,comppressor, solenoid valve, and many parts of the
products.
Certification
Cooperative partners
BOTO ADVANTAGE
Customers photos
OUR TEAM
FAQ
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size,
temperature range, humidity range, power supply, product, etc.),
leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for
cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is
available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during
warranty period, exclude consumables and man-made damages), life-time technical service
