    Deep Underground Water Well Drilling Rig With Diesel Engine 350 Meters Large Pneumatic Drilling Machine

    Ask Lasest Price
    Brand Name : SHITAN
    Model Number : ST350
    Certification : ISO
    Price : A detailed discussion
    Payment Terms : T/T, Western Union
    Supply Ability : 1000 sets per year
    Delivery Time : 5-8 days after payment
    • Product Details
    • Company Profile

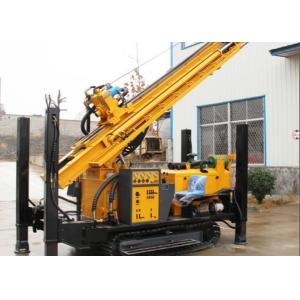

    Deep Underground Water Well Drilling Rig With Diesel Engine 350 Meters Large Pneumatic Drilling Machine

    ST 350 Meters Depth Drilling Machine Water Well Drilling Rig


    ST 350 Water Well Drilling Rig Introduction


    The water well drilling rig machine can work on different formations, well drilling diameter up to 245mm. The drill machine adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore drill hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines.


    ST 350 Water Well Drilling Rig Parameters

    ST350 water well drilling rig
    typeST350
    The weight9.8T
    Dimension

    6m×2m×2.5m

    The hole diameter

    105-305mm

    Drilling depth350m
    One-time advance length6m
    Walking speed2.5KM/H
    Climbing angles30
    Power92KW
    Using air pressure1.7-3.3MPA
    Air consumption17-35
    Drill pipe length1.5m 2.0m 3.0m 6.0m
    Drill pipe diameter89mm,102mm,
    Rig lifting force20T
    Swing speed55-115rpm
    Swing torque6200-85000N.m

    ST 350 Water Well Drilling Rig Characteristics


    1. Drilling rig drive can be divided into mechanical drive, alternating current drive, direct current drive, compound drive and other forms, with reasonable power matching, high transmission efficiency and reliability. The machine layout is reasonable, the use of standardized, modular design, a variety of combinations of versatility, interchangeability, high degree of integration, installation, transport fast.

    2. assembled in sections, connected by bolts or pin shafts. The lifting is divided into vertical lifting in sections or overall rotating lifting, and equipped with buffer device in place to ensure stable and safe positioning.

    3. The substructure is in the form of spiral lift, double lift, box stacked, telescopic and so on.

    4. The main brake adopts band brake or hydraulic disc brake, the auxiliary brake adopts pneumatic water-cooled push-disk brake, electromagnetic eddy current brake, or the auxiliary brake is made by energy consumption braking of ac frequency conversion motor.


    ST 350 Drilling Machine Water Well Drilling Rig FAQ


    1. What are the delivery times?

    The specific delivery time depends on the items and quantity of your order.
    2. Do you have a MOQ limit?
    Yes it depends on the products size and production process.
    3. What are your payment methods?
    T/T,Western Unions payments are available.
    4. What after-sales service can you provide?
    It has developed a whole-process and all-round after-sales service system, including equipment installation and debugging, maintenance, testing, operation training and spare parts supply.

    Precautions for maintenance of water well drilling rig accessories


    It takes 50-200 hours to replace the dust-proof filter element. We need to replace the dry filter element for the next two hours. We need to use the engine for 50-200 hours

    Bit plays a very important role in the drilling of water well drilling rig, but the quality of a bit directly affects the efficiency and quality of water well drilling. Therefore, in the selection process, we should pay attention to the selection and use of lower bit. When we are operating the drill bit, we must pay attention to several aspects in order to better production and operation.
