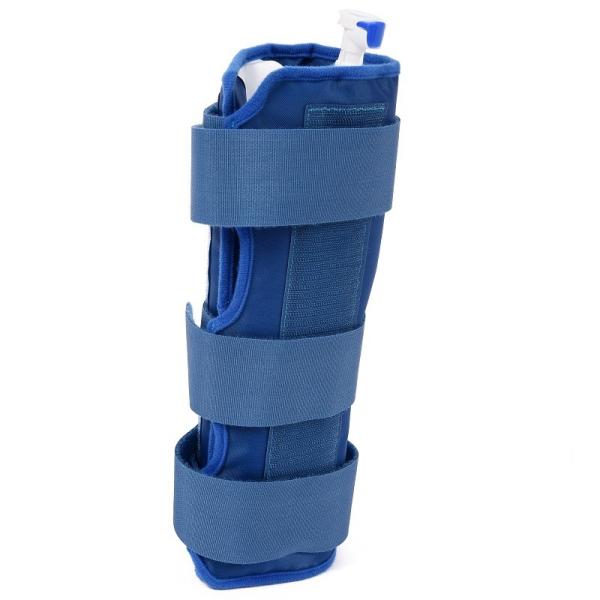

Hand Rehabilitation Cold Compression Therapy Machine Cryo Cuff Wrap
Hand Rehabilitation Arctic Ice Cold Compression Therapy Machine is
a new medical device that combines compression with cold to control
swelling, edema, hematoma, hemarthrosis, and pain in the joints. The
device is flexible with gravity and motorized, automated cold and
compression therapy, you can use it manually by lifting/lowering
the unit, or using air pump (optional) to activate auto circulation
system. simpe in design, but effective in use; It is appliable for
Post-operative recovery, trauma, athletic training rooms, and home
use.
Components:
All Cryo/Cuffs can be ordered as a single cuff, or with a cooler
(including a tube assembly and pump system ). The Cooler is
available separately and can be used with any model in the
Cryo/Cuff line.
Cuff: covers the body part(include 9 parts,such as the head, shoulder,
elbow, hand and wrist, back, knee, leg, ankle) with pressured ice
water
Cooler: High:29cm,Diameter:19cm,Measures:3.87L, holds enough water and ice
for 6-8 hours of cryotherapy
Tube: exchanges the water between cuff and the cooler
Automatic Circulation System: make the water in the cooler flow into the cuff intermittently
| Item Name: | Hand cold compression therapy machine system |
| Item No.: | B2-M |
| Color: | Blue |
| Logo: | Can be customized |
| Material: | PVC velvet laminate |
| Feature: | 1. Easy-to-use operation for clinic and home care, are reuseable
,no danger of tissue damage |
| 2. Improved the patient's compliance and tolerance, especially for
elder patients. |
| 3. Widely used in clinical, It can be used for hot and cold
therapy. |
| 4. The use of more secure and convenient for hospital, school,
sports teams and so on. |
| 5. 10 different types for each body part. |
Operation:
1. Prepare cooler: Connect the blue tube to the cooler. Add cold
water.
to the line inside the cooler, then add ice to the top of the
cooler. Allow 5 minutes with occasional shaking to chill the water.
2. Apply the cuff: Always apply it empty. Secure the top strap,
snug but not tight. Adjust the front opening so the cuff fits the
slightly injured part. Secure the bottom strap loosely. Do not
stretch the elastic.
3. Fill and pressurize: Connect the tube to the cuff. Open the air
vent on the cooler. Elevate the cooler and hold for about 30
seconds to pressurize the cuff. The cooler can now be disconnected
by pressing the metal tab on the quick – disconnect while the
cooler is elevated to seal the pressure.
4. Rechill: Rechill the water once an hour or as needed. Connect
the tube,lower the cooler and the warmed water will drain from the
cuff into the cooler. Allow a couple of minutes for the water to
mix with the ice and rechill, then elevate the cooler and repeat
the filling process.
Care & Storage:
water with mild detergent, Lysol, 70% isopropyl alcohol, or
hydrogen peroxide). Water chamber can be cleaned by filling the
control unit one-third full with hydrogen peroxide (off the shelf)
and running the system for five minutes. Outer sleeves are hand or
machine washable. When not in use, fold or roll the wrap(s). To
prevent mold or mildew growth, do not store in enclosed plastic
containers.
Special Notes:
Whether used hot or cold, it is advisable to check that the
temperature is not too extreme against the skin. It is recommended
that the pack is wrapped in cloth before applying to skin.
