    UV Coating PCB Drilling Recombined Backup Board Enviroment Protection

    Ask Lasest Price
    Brand Name : DXE
    Model Number : 25-HRW/20-HRW/15-HRW/25-URW
    Certification : ISO90001
    Price : USD 2.70-3.00/sheets
    Payment Terms : L/C, T/T
    Supply Ability : 100,000 Sheets/Month
    Delivery Time : 15 Days
    • Product Details
    • Company Profile

    UV Coating PCB Drilling Recombined Backup Board Enviroment Protection

    UV Coating Recombined PCB Drilling Backup Board Water-Based Enviroment Protection Coating Thickness 1.6 / 2.1 / 2.5 mm


    Special Features:

    --Water-Based Enviromenttal Protection Materials,No Pungent Smell

    --Glossy Surface,Good Flatness,Not Easy Warping And limited Thickness Tolerance

    --Unique Additive Material Can Lower Drill Temperature,Reduce Bit Wear And Increase Drilling Location Accuracy

    --Customized Sizes Are Accepted


    Shipping Terms:

    EXW,FOB,CNF & CIF


    Product Details:

    Application
    For High-class and Multi-Layer PCB board Drilling,cutting and packing
    Type
    25-HRW/20-HRW/15-HRW/25-URW
    Thinkness(mm)
    2.5/2.1/1.6/2.5
    Thinkness Tolerance(mm)
    ±0.15
    Surface Hardness(Shore-D)
    75±5/75±5/70±5/80±5
    Apperance
    White,Allow Some Color Shading
    Size(inch)
    37"x49"/41"x49"/43"x49"
    Size Tolerance(mm)
    ±3

    TypeThickness(mm)

    Thickness

    Tolerance(mm)

    Surface

    Hardness(Shore-D)

    Density

    (Kg/m³)

    Size

    (Inch)

    Size

    Tolerance(mm)

    ApperanceWarpage
    25- HRW2.5

    ±0.15


    75±5880±50

    37‘’x49"

    41"x49"

    43"x49"



    ±3



    Gloss White(Allow Some Color Difference)



    ≤0.6% Of Diagonal


    20-HRW2.175±5880±50
    15-HRW1.670±5880±50
    25-HRW2.580±5

    960±50

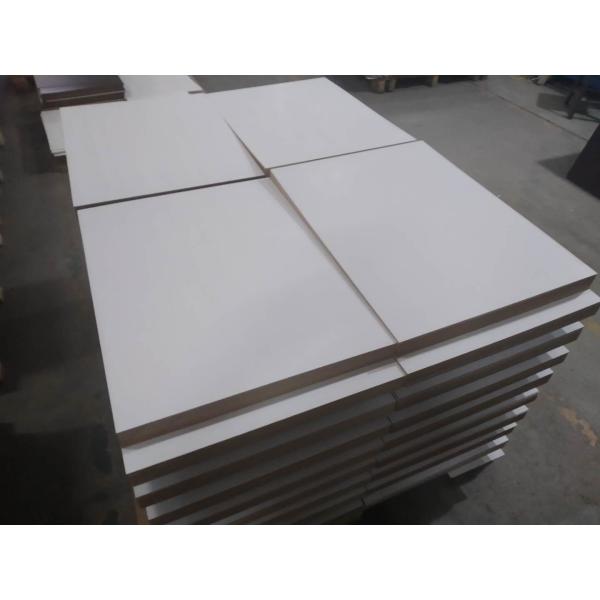

    Quality UV Coating PCB Drilling Recombined Backup Board Enviroment Protection for sale
