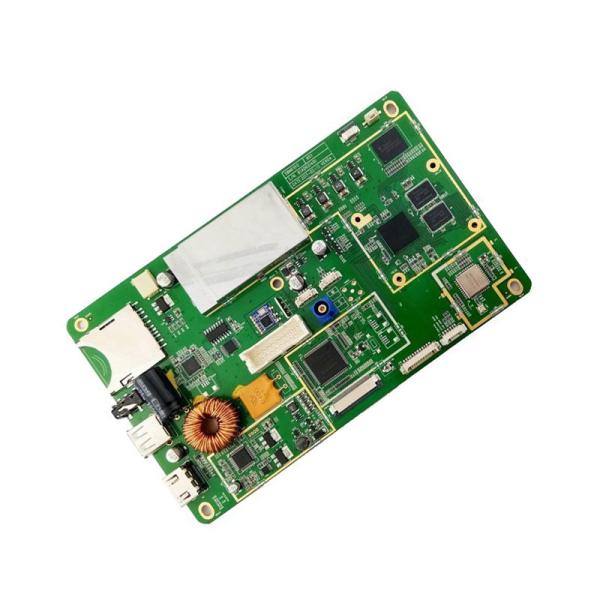

One-stop PCB and PCBA electronic manufacturing services:
1. PCB manufacturing service: Need Gerber file(CAM350 RS274X), PCB files(Protel 99,AD,Eagle),etc
2. Components sourcing services: BOM list included detailed Part number and Designator
3. PCB assembly services: The above files and Pick and Place files,assembly drawing
4. Programming & Testing services: Program,instrouction and test method etc.
5. Housing assembly services: 3D files,step or others
6. Reverse engineering services: Samples and others
7. Cable & wire assembly services: Specification & others
8. Others services: Value-added services
FASTPCBA is the top 10 manufacturing and pcb assembly factory
globally, with ISO 14000, 13485, ISO9001, and IATF16949
certificates simultaneously, can provide better pcba service for
customers from Iot pcba aerospace pcba, military pcba,
communication pcba, industrial pcba, medical pcba, automotive pcba
etc.
FASTPCBA keeps pace with the times, has imported advanced MADATA,
YAMAHA, selective wave soldering, 3D AOI, X-RAY etc equiments, we
can provide original package componets agent service, custom pcb
manufacturing, precise pcb assembly, accurate pcb printing, save
your cost and time at the same time.
FASTPCBA survival more than 20 years, as our goal is always provide
best quality pcba solution for customers from domestic and abroad
like Japan, Brazil, America, Russia, Gemany, France, UK etc.
FASTPCBA can turn your pcb design to pcba or pcb assp, welcome to
inquiry and visit us in shenzhen china.
PCB Capability:
| Article | Description | Capability |
| Material | Laminate materials | FR4, High TG FR4, High Frequency, Alum, FPC... |
| Board Cutting | Number of layers | 1-48 |
Min.thickness for inner layers
(Cu thickness are excluded) | 0.003”(0.07mm) |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” |
| 4layer:0.01±0.008” |
| 8layer:0.01±0.008” |
| Bow and twist | no more than 7/1000 |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) |
| PTH hole tolerance | ±0.002″(0.005mm) |
| NPTH hole tolerance | ±0.002″(0.005mm) |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) |
| Thickness | (0.012*0.017mm) |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) |
| Max Size of Finish Board | 700*460mm |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… |
| PCB Outline | Square,circle,irregular(with jigs) |
| Package | QFN,BGA,SSOP,PLCC,LGA |
FAQ:
Q: What service do you have?
A: We provide turnkey solution including PCB fabrication, SMT,
plastic injection & metal,final assembly, testing and other
value-added service.
Q: What is your minimum order quantity (MOQ)?
A:As for MOQ, we have no request about it. Even 1 pcs is ok for us.
Q: What is needed for PCB & PCBA quotation?
A: For PCB: Quantity, Gerber file and technic requirements
(material,size, surface finish treatment, copper thickness,board
thickness).
For PCBA: PCB information, BOM,Testing documents.
Q: How to keep our product information and design file secret ?
A: We are willing to sign a NDA effect by customers side local law
and promising tokeep customers data in high confidential level.
Q: What are the main products of your PCB/PCBA services?
A: Automotive, Medical, Industry Control,IOT,Smart Home,Military.
Q: Are you factory?
A: Our factory is located in 1st Building, No. 18-1, Yuquan East
Road, Yulv Village, Gongming Street, Guangming New District
shenzhen, china. (Contact us for factory VR panorama. )
