10-1000kg per Hr ginger powder making machine
turmeric grinding machine cinnamon processing machineturmeric
grinding machine cinnamon processing machine
1.Preliminary coarse crushing before fine crushing- BSC Series Coarse
Crusher(can make 0.5 to 20 mm granule)
It is used as specialized equipment for coarse crushing of
materials in preparatory process, and crush hard and tough
materials like plastics, rubber, etc. Especilally, it is not
limited by viscosity, hardn ess, softness and fiber shape of
material and has good effectt to all materials.
Technical data:
| Model | BSC-200 | BSC-300 | BSC-400 | BSC-600 |
Capacity(kg/h) | 80-300 | 100-800 | 200-1000 | 500-1500 |
Size of input granules (mm) | <100 | <100 | <100 | <100 |
Crushing Fineness(mm) | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
Speed of principal axis(rpm) |
960 | 960 | 960 | 960 |
Motor power(KW) | 3 | 5.5 | 7.5 | 11 |
Overall Size(L*W*H) (mm)(Type B) | 900*600*1140 | 900*700*1440 | 900*800*1440 | 1000*900*1440 |
Weight(Kg) | 200 | 300 | 380 | 500
|

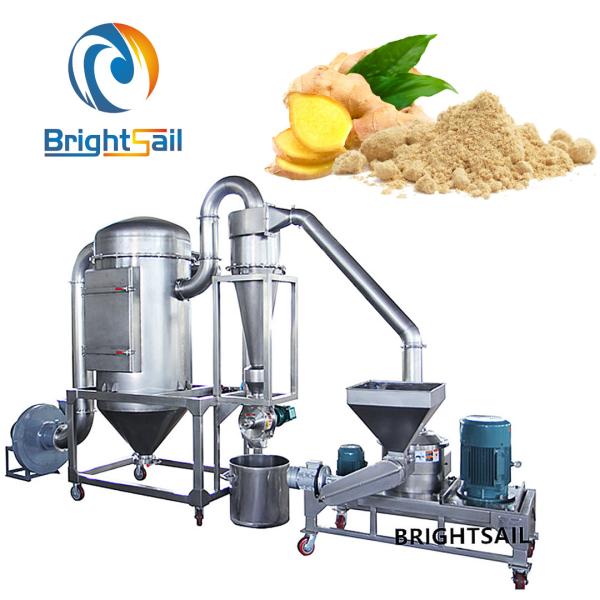

2.low oil spices and for superfine powder making- BSP Air classifier
Mill (can make 40 to 320 mesh powder)

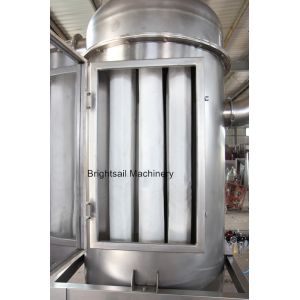

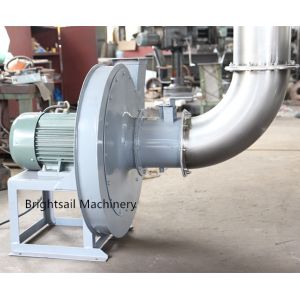

BSP powder machine by the crusher, cyclone separator, dust remover, Fan, electrical
control box and other components.
With the ability of selection, screening, uniform particle size,
continuous processing.
After the superfine grinder is connected to the feeding machine, it
can realize the process of fully automatic integration from
feeding, crushing and discharging. On the one hand, it can reduce
labor costs, and on the other hand, it is more hygienic, safe and
efficient, especially suitable for large-scale condiments
Production factories and flour mills, etc.
turmeric grinding machine cinnamon processing machineturmeric
grinding machine cinnamon processing machine
turmeric grinding machine cinnamon processing machineturmeric
grinding machine cinnamon processing machine
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Application:
spices,chilli,herbal,turmeric,ginger,coco
beans,chickpea,rosehip...etc.
Our Company:
Brightsail Industrial Group Co. , Ltd. is the Trading Department of
Brightsail Machinery Co. , Ltd. and Jiangyin Hengsheng Steel
Structure Co. , Ltd. . It was established in 2002. We provide
professional powder processing integrated solutions, grinding
machines, mixers, sieves, welding services, welding machines,
chemical powder... after 15 years of development and accumulation,
our company has become one of the most influential equipment
manufacturers. Willing to grow and develop together with new and
old customers.
