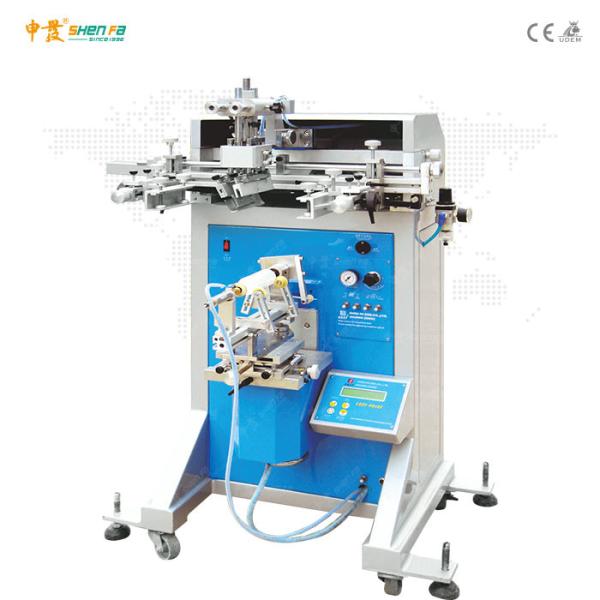

Semi Automatic Screen Printing Machine for Cylindrical/Conical
/Oval Cosmetic Bottles Model SF-250
Application:
Our company manufactures the SF-250/A screen printing machine,
which can print the small diameter workpieces and can also print
the small plane, round and ellipsoid. It can be changed the fixture
and some structure parts. For example: plastic packing, glass
bottles, stainless steel cups, lipstick, cosmetic bottles, scour bottles, drink bottles, pots,
oil-filter shell etc.
Technical Parameters:
| Model | Name | Max.printing size | Speed(Pieces/minute) | Machine size(LxWxH) | Net Weight | Air Pressure(bar) | Power |
| SF-250 | Mini Screen Printing Machine | φ70X180mm | 36 | 96X72X132cm | 135kg | 5 | 220V/50Hz 50w |
Features:
1.Special design for printing round,curve and cone-shape objests.
2.With inported pneumatic cylinders for the driving of
stroker,print head,print bed adjustment,the speed could be adjusted
individually.
3.Microprocessor panel control,with stable and easy operation.
4.Work pieces and tooling fit to dear rack,with high accuracy
printing effect.
5.Fast setup&quick tooling change-over.
