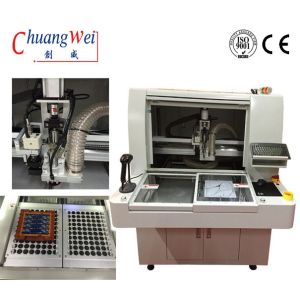

Off-line PCB Depanelizer System CNC PCB Router Separator for SMT PCB Depanelizer System Specification:
1. Unilateral working area : 300 x 350 mm (Double working platform)
2. XY cutting speed : 0~100mm/s
3. Re-orientation accuracy : ± 0.01mm
4. Cutting accurancy : ± 0.1mm
5. XYZ AB Way of actuation : AC servomotors
6. Interface : PC WINDOW (with frame grabber )
7. Conveyor belt height : 900 ±50mm
8. Electrostatic eliminating gun
9. Cutting spindle : MAX60000rpm
10. Air press supply : More than 4.5kg/cm²
11. Power consumption: 3KVA
12.Voltage : 220V 1φ 50/60Hz
13. Machine Size : D 1470 * W 2000 * H 1620 (mm)
14.Precipitron : 5HP
15. Precipitron :Voltage 220V/380V 3φ 50/60Hz
16. Machine weight :1000kg (5HP Lower dust collector weight :
300kg)
Pick and place mechanism for PCB :
1. Control system : Control by Six axis , WINDOWS
platform,all-in-one.
2. drive mechanism :sidsway , upper and down Axis , AC servomotors
3. pick and place installations : automatic feeding and unloading
material
( modularity Vacuum suction ,Vacuum detection device ,Optional ).
4. Speed : Max 500 mm/sec
5. bandwidth : Min 80mm Max 300mm
Why choose os
| 1.Engineers available to service machinery oversea. | Engineers are available to be sent to freign countries to do
machinery training and offer technical support.
|
2.Mature technique & forerunner to process makes high quality
machinery.
| As largest manufactory in South China, we have 12 years experience
on PCB separator machines and soldering machines. pcb router
machine
Our R&D team continuously upgrade the existing machines to meet
the market development trend.
|
3.Effective customer service. pcb router machine
| All of us together are stronger and wiser than any one of us
individually. To succeed, we must assume responsibility, cooperate
with fellow associates and withdepartments, effectively comminicate
with one another, foster enthusiam and participate in
decision-making. To be seay reachable by customers and provide
prompt replies to solve their problems and create value for
customers.
|
4.One year warranty for the machines except accessories. b router
machine
| Robust frame construction and Japanese steel blades obtained good
appraise and recognized by and oversea clients. We offer parts for
replacement under warranty free of charge, clients only need to
bear freight charge.
|
Our mission:
| Ongoing PCB industry PCB separator technological innovation, to
create greater value, allowing customers to success
|
Our Vision:
| PCB industry to become the world's leading solution providers PCB
separator. pcb router machine
|
