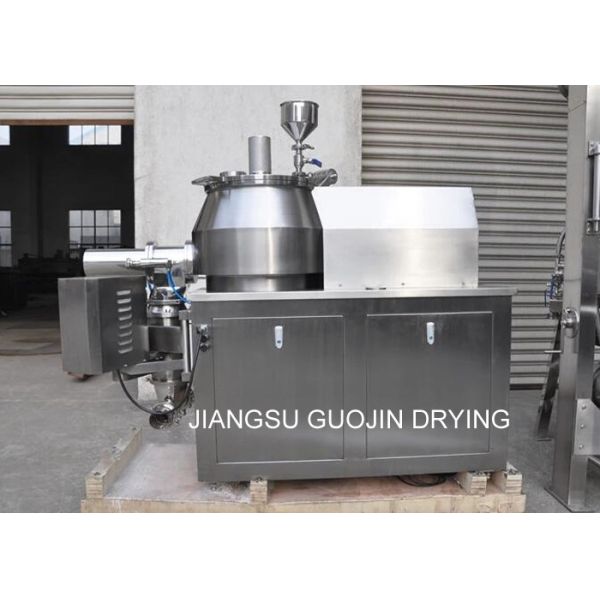

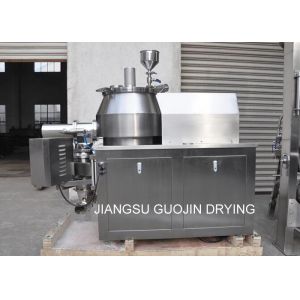

10L Wet Mixing Fertilizer Powder Granulation Machine

Wet Mixing Fertilizer Powder Granulation Machine

HSMG high speed mixer granulator is a high efficiency equipment that can mix different powder materials and granulate granule in one procedure. It is widely used for pharmaceutical industry, foodstuff industry and chemical industry, etc.

Product Features

1. The High speed HSMG series wet type mixing granulator adopts a practical horizontal cylinder structure.

2. The driving shaft is euipped with inflatable seal. While washing, the air can be replaces by water.

3. Fluidized granulating processed is used and the final granules are quite round with high fluidity.

4. Compared with traditional technique, this type of machine can reduce 25% of adhesive and also shorten the drying time.

5. For each batch of material, with 2 minutes dry mixing and 1-4 minutes granulating, the efficiency is 4-5 times higher than that of traditional technique.

6. Dry mixing, wet mixing and granulating are finished inside the same sealed container, which is in conformity with the requirement of GMP.

Product Working Principle

The blending and granulating procedures and completed in the same vessel of the granulator. Powdery materials in the stationary conic vessel remain in a semi-flowing and rolling state owing to the agitation by a blending paddle, and are fully mixed. After pouring in adhesives ,the powdery materials gradually change into fine, damp granules turn moist and their shapes begin paddle and the inside wall of vessel, powdery materials turn into loose, soft materials. Through the action of granule shaping paddle, the soft materials gradually change into fine, damp granules with the same size.

Technical Parameters

Model	7/2.5	10	50	100	150	200	250	300	400	600
Productive capacity(kg/batch)	0.3-1	3	15	35	50	60	80	100	135	200
Granules size(mesh)	20-80
Working time(min)	5-7
Container volume(L)	7/2.2	10	50	100	150	200	250	300	400	600
Mixing power(kw)	0.75	2.2	4/5.5	6.5/8	6.5/8	11/14	11/14	13/16	18.5/22	22/28
Cutting power(kw)	0.75	1.1	1.3/1.8	2.4/3	2.4/3	4.5/5.5	4.5/5.5	4.5/5.5	6.5/8	9/11
Mixing speed(r/min)	30-1000	30-600	200/400	200/400	180/270	180/270	180/270	140/220	106/155	80/120
Cutting speed(r/min)	300-3000		1500/3000
Pressure of compressed air(Mpa)	0.3-0.6
Consumption of compressed air(M3/min)	No	0.1	0.11	0.13	0.2	0.25	0.25	0.3	0.4	0.4
Weight(kg)	150	300	400	800	900	1200	1500	1550	1650	1800
Overall dimension(mm)	800*450 *900	1250*550 *1160	1730*750 *1610	1950*750 *1810	1950*750 *1810	2210*880 *2000	2210*880 *2000	2310*1050 *2000	2485*1050 *2050	2585*1400 *2100

Chart of overall dimensions

Product Show
