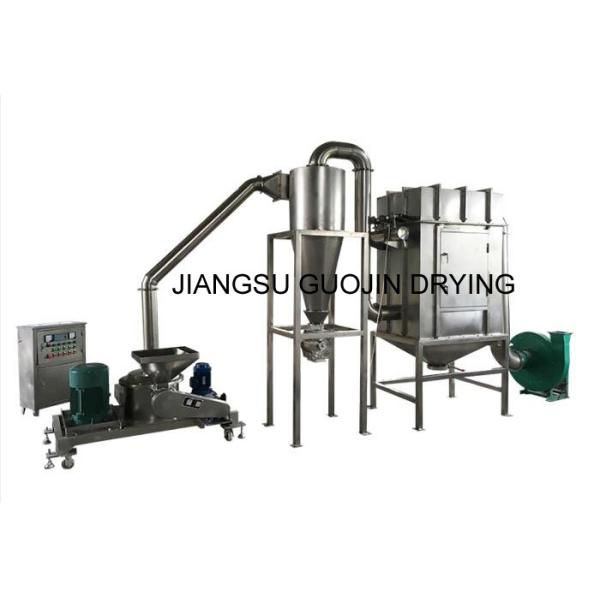

GMP Design 13.5KW Fine Powder ACM Grinding Machine

Fine Powder Air Classifing Grinding Machine

This machine consists of three parts: the main machine, the auxiliary sail and the electric control box. The design is compact, the structure is reasonable, with air separation, no sieve and no net. The machine is equipped with a grading mechanism. The crushing and grading can be completed at one time. Negative pressure transportation enables the heat generated in the cavity to be continuously discharged during the crushing process, so it is also suitable for the crushing of thermosensitive materials. The machine has wide application range, continuous production process and adjustable discharging granularity. It can handle the crushing and grading of many materials such as chemicals, food, medicine, cosmetics, fuel, resin, shell, etc. The machine has reached the international advanced level.

Technical Advantages

1. Alloy steel hammer blades and rotor

2. GMP and food grade design

3. Negative working condition can prevent dust and be suitable for heat sensitive material pulverization.

4. Output size is adjustable via air classifier and air flow rate.

5. Feeding rate is automatic controlled

6. Particle size distribution can be accurately controlled

Technical Parameters

Model	Production capacity(kg/h)	Feeding size(mm)	Discharge motor(mesh)	Total power(kw)	Main speed(r/min)	Overall size(LxWxH)(mm)	Weight(kg)
ACM-15	10-200	<10	80-320	13.5	~6000	4200*1200*2700	850
ACM-20	20-300	<12	80-320	17.5	~4800	4700*1250*2900	1250
ACM-30	30-800	<10	60-450(adjustable)	46	3800	6640*1300*3960	2800
ACM-60	50-1200	<10	60-450(adjustable)	84.15	2800	7500*2300*4530	4500
ACM-80	100-2000	<15	60-450(adjustable)	145	2200	9800*2600*6800	9500
ACM-110	200-3000	<20	60-450(adjustable)	230	1480	13000*3500*7200	16000

Product Work Principle

The ultra-fine grinder is a vertical axis reflecting type grinder that can simultaneously complete two processing steps of fine grinding and fine separation. It consists of the machine body, machine frame, feeding device, crushing device, discharge pipe, transmission device and motor, and is composed of main machine, dust collector, high-pressure centrifugal fan, air lock, cyclone collector, electric control cabinet and complete air turbine micro powder unit. The granularity can be arbitrarily adjusted without stopping the machine. The product has a uniform particle size and a fineness of 80-320 mesh. The machine has a self-cooling function.

Product Show
