1500kg/h Spice Grinder Mill 3800rpm With GMP Design

Food Fruit Vegetable Spice Grinder Mill/Chili Grinder Machine

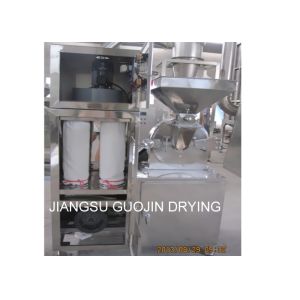

This machine consist of universal pulverizer , dust collecting cabinet and dedusting collector, preventing dust flying during powder grinding, suits for pulverizing sugar, herbs, chemical products, food materials and spices etc into the powder of 20-120mesh.

Product Technical Advantage

1. Alloy steel disc and cutter head pins

2. GMP and food grade design

3. Negative working condition can prevent dust and be suitable for heat sensitive material grinding

4. Output size is adjustable by changing filtering sieve

5. Feeding rate can be automatically and accurately controlled

6. Different types of dust collector can be equipped to prevent dusting

7. Air cooling or water cooling can be equippeed

8. Provide coarse to fine grinding of soft to medium hard materials into controlled particle sizes.

9. Size of output product: 20-120 mesh (adjustable by changing sieves).

10. GMP design.

11. Different types of dust collector can be equipped

Technical Parameters

Model		20B	30B	40B	50B	60B	80B
Production capacity(kg/h)		60-150	100-300	160-800	200-1000	300-1500	500-2000
Spindle rotation speed(r/min)		5300	4200	3800	3200	2800	2200
Feeding granularity(mm)		10	10	10	15	15	15
Crushing granularity(目)		20-150	20-120	20-120	20-120	20-120	20-120
Crushing motor(kw)		4	5.5	7.5	18	22	30
Dust removal motor(kw)		0.55	0.55	1.1	1.5	2.2	3
Dimensions(LxWxH)	With dust removal	1100x600x1650	1300x700x1850	1350x700x1920	1400x800x2700	1600x900x2300	1800x1200x2500
	Single machine	550x500x1200	600x550x1320	650x600x1550	700x650x1680	850x800x1820	950x900x1960

Product Working Principle

1. Centrifugal impact pin mill is a compact, high speed impact mill capable of fine size reduction specially designed for chemical, pharmaceutical and food application.

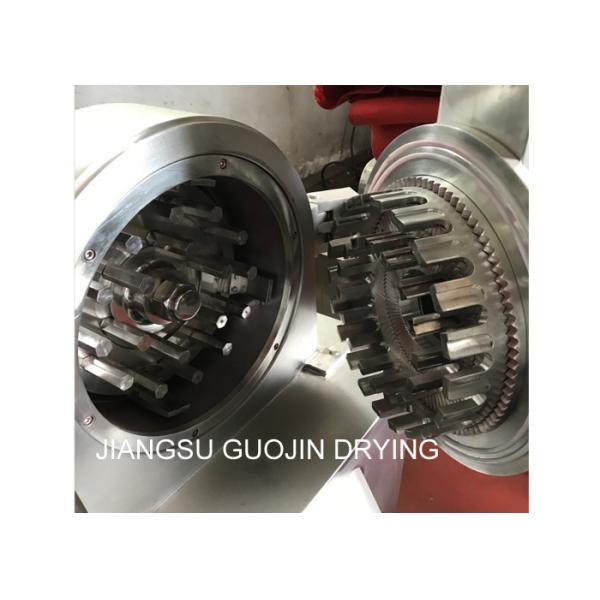

2. Material is fed into the grinding chamber via the central inlet of the opposing stationary disc by gravity or screw feeder. High speed rotation of the inner disc creates centrifugal force that accelerates bulk material moving from the center to the periphery of the discs at high speed. As materials pass through a path of intermeshing rows of rotating and stationary pins, grinding is done by strong impact and shearing between the pins. The centrifugal force or air stream generated by draft fan force the product go through a filtering sieve which is around the grinding chamber to get required particle size. Different particle size is determined by the speed, number, type of pins and hole size on the sieve.

3. Centrifugal impact pin mill has been commonly used for coarse to fine grinding of soft to medium hard, brittle and crystalline materials in food, chemical and pharmaceutical industry.

Product Structure:

Product Show
