Wood Sawdust Pulse Air Flow Dryer 35M2 With Coal Heating

Wood Sawdust Pulse Air Flow Pipe Drying Machine

1. Direct airflow dryer drying machine

2. Cyclone dryer drying machine

3. Pulse airflow dryer drying machine

PCD Pneumatic Conveying Dryer Description

The PCD Series Airflow Dryer is a mass quantity drying equipment, which adopts instant drying technology. It utilizes the
fast-moving hot air to lead the wet material and keep it suspended in the hot air and this strengthen the drying process and improve heat and mass transfer rate. The unbound water of dried material is almost completely removed (for example: the initial moisture of starch material is ≤40%, the final moisture can be 13.5%). The dried material will not deteriorate which ensure higher quality than common dryers and ensure the users can achieve a higher economic return in the short time.

PCD Pneumatic Conveying Dryer Features

1. Powerful drying. Little invest and the amount of evaporated moisture is high ( from 50kgH2O/h to 2000kgH2O/h)

2. The drying time is short. The series is suitable in strong heat sensitive materials. The finished product is seperated from outside, and no pollution with high quality.

3. The equipment is a total set, the heat source can be shoose from steam, coal fuel, oil fuel and gas fuel hot air furnace.

PCD Pneumatic Conveying Dryer Application

This dryer is suitable for high moisture materials, paste materials, and other raw materials that can’t be dried with other airflow dryers; such as copolymer of vinyl acetate and chloroethylene, cellulose acetate, catalyst, C.M.C, CT-1 resin, burnt plaster, electrolytic manganese dioxide, anthraquinone ammonium sulphonate, flour, diatomaceous, silica gel catalyst, born powder, potassium perchlorate sulfonamide, synthesis resin, active gluten, active argil, chemical filter cake, titanium dioxide, decanedioic acid, cooper sulphate, aluminum sulphate, sodium sulphate, calcium phosphate, starch, dyestuff, calcium citrate, coal earth, cement, compounds, ferric oxide, organic fuel, maize albumen feed, mica powder, medicine, dyestuff, paper pulp of potassium perchromate, lees residue, and etc.

PCD Pneumatic Conveying Dryer Technical Parameters

Type	Moisture(kg/h)	Equipped power(kw)	Occupied area(m2)	Height(m)
PCD50	50	7	16	9
PCD100	100	13	26	11
PCD200	200	21	35	11
PCD250	250	24	51	13
PCD500	500	43	78	13
PCD1000	1000	100	105	15
PCD1500	1500	150	200	16

PCD Pneumatic Conveying Dryer Maintainance

Daily maintenance contents:

(1). Check the automatic drain valve on the front filter before each shift.

(2). Check whether the change of tower and lift is normal.

(3). Check operating conditions, inlet pressure, inlet temperature and air flow.

(4). Check for moisture indicators, blue for dry and pink for moisture.

(5). Check whether the muffler is dirty, and the regeneration tower back pressure is too high to indicate that the muffler needs to be replaced.

(6). Check the pressure drop of the front filter and the back filter, if the pressure drops more than 0.5 bar, change the filter element.

Monthly maintenance contents:

(1). Check the control gas of the unheated and airflow dryer.Replace when necessary.

(2). Check the filter element of air flow dryer guide filter, if necessary, please replace it.

(3). Check the suction filter of air flow dryer, if necessary, please replace it.

Maintain content quarterly:

Check the front and rear filters, check for blockages and possible damage, and replace them as needed. Purge the relief valve with compressed air. Check the dew-point status of the output.

PCD Pneumatic Conveying Dryer Sketch of Structure

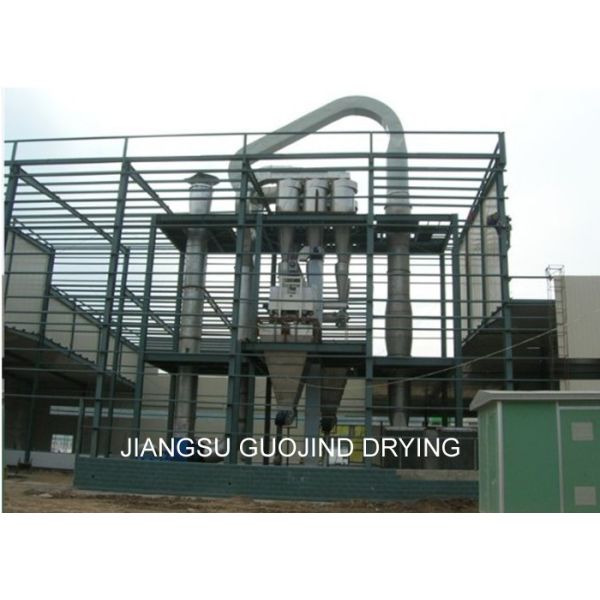

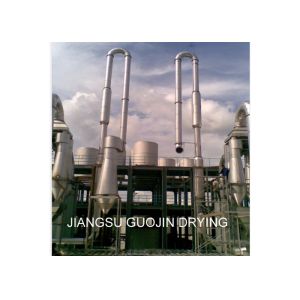

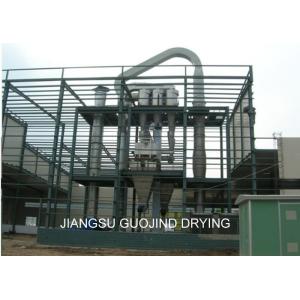

PCD Pneumatic Conveying Dryer Show
