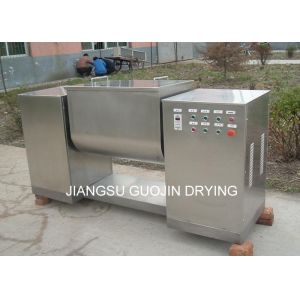

0.2M3 Liquid Powder Groove Blender 40kg/batch

Wet Dry Liquid Powder Groove Type Blender

GTM series guttered mixer is widely used for mixing powder or wet materials, and can make the materials in different proportions mixed uniform.

The parts of the machine which contact with materials are made of stainless steel. The gap between blades and the inner wall of the cylinder is very small, so there's no "dead corner" in mixing. Seal devices are fixed on both ends of the stirring shaft to prevent the materials from rushing out. Feed hopper is controlled though buttons. So it's very convenient to feed or discharge materials. This type of mixer is widely used in pharmaceutical, chemical, foodstuff industry and so on.

​

Prodcut Working Principles and Features

1. This machine uses two motors, a stirring motor, which drives the mixing paddle to rotate the mixture material through the shaft. A discharge motor can be used to tilt the stirring tank to facilitate unloading.

2. There are one-way thrust ball bearings and radial thrust ball bearings at both ends of the stirring shaft to prevent radial turbulence caused by negative stress.

3. The sealing at both ends of the mixing shaft has been improved, and it can be completely sealed without contaminant material.

4. When jogging is used, it is easy to discharge, and it will not cause the phenomenon that the hopper tilts too much. The left end of the machine rotates. Because the worm wheel and the worm drive have self-locking effect, the mixing box can be dumped at any angle.

5. Add the raw material to the cylinder at one time, dry it for a period of time, add the adhesive or spray the liquid, or add the raw material and the adhesive to the working container at one time, and mix it into the ideal soft material.

Technical Parameters

Type	Total volume(m3)	Feed amount(kg/batch)	Overall dimension(mm)	Stirring speed(rpm)	Power formxing(kw)	Power for discharge(kw)
150	0.15	30	1480*1190*600	24	3	0.55
200	0.2	40	1480*1200*600	24	4	0.55
300	0.3	60	1820*1240*680	24	4	1.5
500	0.5	120	2000*1240*720	20	5.5	2.2
750	0.75	150	2300*1260*800	19	7.5	2.2
1000	1.0	270	2500*1300*860	19	7.5	3
1500	1.5	400	2600*1400*940	14	11	3
2000	2	550	3000*1500*1160	12	11	4
2500	2.5	630	3500*1620*1250	12	15	5.5
3000	3	750	3800*1780*1500	10	18.5	5.5

Product Application

The mixer is used for mixing the dry material grains inmedical, chemical, food, metallurgical and other industries.

Product Show
