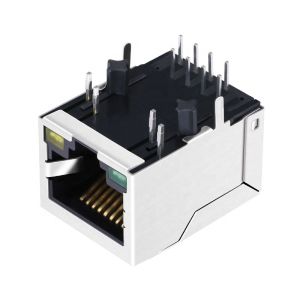

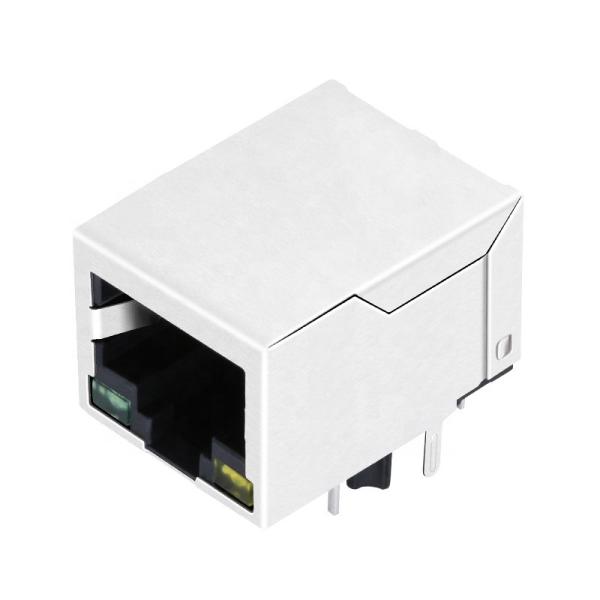

    100Base-T 1000Base-T 1x1 8P8C RJ45 Female Connector Length 21.6mm

    Ask Lasest Price
    Brand Name : PHCONN
    Model Number : 1000MRMA21.6
    Certification : UL
    Price : 1.1-1.5 USD
    Payment Terms : L/C, T/T, D/P
    Delivery Time : 5-15 work days
    • Product Details
    • Company Profile

    100Base-T 1000Base-T 1x1 8P8C RJ45 Female Connector Length 21.6mm

    1x1 Port Length 21.6mm 100/1000 Base-T 8P8C RJ45 Female Connector



    ELECTRICAL


    CURRENT RATING:

    1.5 AMPS

    VOLTAGE RATING:

    125 VAC RMS

    INSULATION RESISTANCE:

    1000 MΩ Min. @ 500V DC

    WITHSTAND VOLTAGE:

    1000 V AC OR 1500V DC RMS @0.5mA 50Hz / 60Hz 1 Minute

    CONTACT RESISTANCE:

    1XN ROUND PIN 35 mΩ Max./ 1XN FLAT PIN 45 mΩMax./

    2XN ROUND PIN 40 mΩ Max./ 2XN FLAT PIN 50 mΩMax.


    MECHANICA


    MATING/UNMATING FORCE:

    22N / 2.27kg Max

    RETENTION STRENGTH:

    57.83N Min./ 30N Min.

    DURABILITY:

    750 MATING/UNMATING CYCLES Min.

    ENVIRONMENTAL

    OPERATION TEMPERATURE:

    -40℃~+85℃ / -20℃~+70℃

    STORAGE TEMPERATURE:

    -10℃~+40℃ RELATIVE HUMIDITY<80%


    MATERIAL


    HOUSING:

    PBT/PA46/PA66/ABS/PC, UL94V-0 OR UL94V-2

    TERMINAL:

    DIAMETER 0.46mm/THICKNESS 0.35mm PHOSPHOR BRONZE,SELECTIVE GOLD PLATING OVER NICKEL

    GOLD PLATING:

    Fu inch , G/F inch, 3u inch, 6u inch,15u inch, 30u inch, 50u inch
