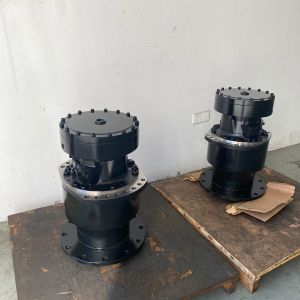

    Poclian MSE Hydraulic Piston Motor With Multi Disc Brake

    Ask Lasest Price
    Brand Name : Helm Tower
    Model Number : MS50
    Certification : IS09001
    Payment Terms : T/T, L/C
    Supply Ability : 100sets per month
    Delivery Time : 15 workdays
    • Product Details
    • Company Profile

    Poclian MSE Hydraulic Piston Motor With Multi Disc Brake

    Helm Tower Replace Poclain MS50 Drive Hydraulic Piston Motor

    Poclain MS50 Hydraulic Motor Description ( Features )

    1). Radial piston type;

    2). Adopt Imported Bearing and Oil Seal, etc.

    3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.

    4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.


    Displacement Group7802
    Displacement(ml/r)3500400849976011
    Theoretical torque a 10Mpa(N.m)5565637379459557
    Rated speed(r/min)80806350
    Rated pressure(Mpa)25252525
    Rate torque(N.m)11500131501640019750
    Max pressure(Mpa)31.531.531.531.5
    Max torque(N.m)14150162502025024350
    Speed range(r/min)0-1480-1380-1110-92
    Max power(kW)standard displacement is 140kw,variable displacement priority rotation 93kw,no priority is 70kw.

    Our motor advantages:

    1).High performance:our motor performance is very close to Poclain original motors, even sometimes be superior to original motor.

    2).100% interchangeable:both complete motor and spare parts, our products could completely replace to Poclain original motors.

    3).Reasonable price:our price system has been settled much lower than Poclain original motors.

    4).Fast delivery time:most of the spare parts we have inventory, the delivery time keeps within 10 days for regular motor.

    5).Excellent aftersales service:we have 12 months' quality warranty, and within warranty time ,all repairment are free of charge.


    Application:

    Construction Machinery

    26T Road Roller(MK series),Forging Manipulator,Bucket Wheel Machine,Raise-Bore Machine

    Mining Machinery

    Heavy duty handling car,coal mine drill

    Marine Machinery

    Marine Deck Crane, Gantry Crane Equipment.



    For instance:
    - BELL 220A Telelogger
    - HAMM 4011 Road Roller
    - BOMAG 211 Soil compactor
    - BOMAG 130 AD Road Roller
    - BOMAG Roller BW213 D2
    - Carterpillar 226B

    - Carterpillar CS-563 compactor
    - John Deere 280 skid steer,
    - BOBCAT T190 skid steer and excavators
    - VERMEER Horizontal Directional Drill
    - SANDVIK Machine
    - Gehl 6635 Skid steer
    - Greenbeans and pea Harvesting Machine(PMC-979-AT)


    Quality Poclian MSE Hydraulic Piston Motor With Multi Disc Brake for sale
