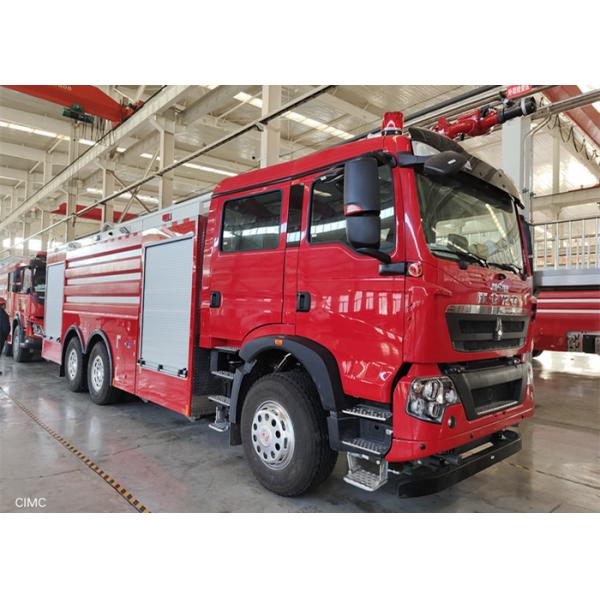

    Piston Primer Pump 60L/S Flow Water And Foam Fire Trucks 20490Kg Max Load

    Ask Lasest Price
    Brand Name : CIMC
    Model Number : PM80
    Certification : ISO9001,CCC
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 180days
    Supply Ability : 350 units/year
    • Product Details
    • Company Profile

    Piston Primer Pump 60L/S Flow Water And Foam Fire Trucks 20490Kg Max Load

    Piston Primer Pump 1.0MPa 60L/S Flow Water And Foam Fire Trucks 20490Kg Max Load


    Pump drive system

    ModelYTQ600F sandwich type
    ManufacturerYANGZHONG
    Transmission shaftHigh balance precision

    Fire monitor

    ModelPS50
    Flow3000L/min
    Pressure10bar
    Rangewater≥65m
    Rotation angle

    Level 360°

    Pitching —15°~ +90°


    Liquid tank

    CapacityWater: 7600kg
    MaterialQualitative carbon steel
    StructureTotal side girder
    Device

    1 ingate

    1 overflow device

    1 liquid level sensor

    1 DN40 drain outlet with valve

    4 DN80 filling pipe end

    Conform to rule GA39.4-92


    Pipeline

    Outlet pipeline

    4×DN80 ordinary pressure outlet

    1×DN50 ball valve

    Suction inlet

    1×DN150 outside inlet

    1×DN150 valve

    Monitor pipeline

    1×DN100 monitor pipeline

    1×DN100 butterfly valve

    Residual water outletWater cock
    Cooling water pipelineThe PTO equipped with a cooling water pipeline connected with the in-outlet pipeline.

    Side girder

    Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.
