Spin Flash Vaporization Dryer For Indigo Blue Pigment

Spin Flash Vaporization Dryer For Indigo Blue Pigment

Hot air in tangential direction enters into the bottom of the rotary flash dryer, and forms strong rotational wind field under the action of stirrer. The materials get into the drying equipment from screw feeder, under the strong effect of the high-speed rotating impeller, the materials are dispersed after being rubbed and sheared. Bulk materials are quickly crushed and fully contacted with the hot air in order to complete drying. Dehydrated dry materials rise with the hot air, the grading ring will retain the large particles and the small ones will be excluded from the rotating flash drying machine through the ring center. The cyclone separator and dust remover will recover these materials. The wet or bulk materials will be threw to the container wall by centrifugal force, and fall into the bottom of the flash dryer to be crushed and dried again.

SFD Indigo Blue Pigment Dryer Features

1. SFD rotating flash drying machine is equipped with a special cooling device at the bottom, thus avoiding material deterioration due to high temperature.

2. Wind distribution device can reduce the resistance to drying equipment and provide air volume for the dryer.

3. This rotary flash dryer uses particular pressurized sealing device and bearing cooling device to effectively prolong the service life of the drive part.

4. Material fineness and final moisture content can be adjustable.

5. Short staying time of material can prevent the material from sticking to the wall and the thermosensitive material from deteriorating.

SFD Indigo Blue Pigment Dryer Application

SFD rotating flash drying machine is applicable to dry viscous, thixotropic, thermosensitive powdery and granular materials in the dyes, pigment, chemical, ceramics, food and pharmaceutical industry. The appropriate materials can be dried by this drying equipment include:
1. Inorganic materials: boric acid, calcium carbonate, hydroxide, copper sulfate, ferric oxide, barium carbonate, antimony trioxide, metal hydroxide, heavy metallic salt and compound cryolite.
2. Organic materials: atrazine, lauric acid, benzoic acid, sodium oxalate, cellulose acetate
3. Ceramics: kaolin, silica and calay
4. Dyes: anthraquinone, black iron oxide, butyrate, titanium hydroxide, zinc sulfide, azo dyes
5. Food: soy protein, gelatinized starch, vinasse, triticin, wheat starch
6. Pharmaceuticals: analgin (The first domestic application of flash dryer)

SFD Indigo Blue Pigment Dryer Technical Parameters

Type	Barrel diameter(mm)	Main machine dimensions(mm)	Main machine power(kw)	Treatment wind capacity(m3/h)	Water evaporatoion(kgg/h)
SFD-2	200	250x2800	5-9	300-800	10-20
SFD-3	300	4400x3300	8-15	600-1500	20-50
SFD-4	400	500x3500	10-17.5	1250-2500	25-70
SFD-5	500	600x4000	12-24	1500-4000	30-100
SFD-6	600	700x4200	20-29-2500	5000	40-200
SFD-8	800	900xx4600	24-35	3000-8000	60-600
SFD-10	1000	1100x5000	40-62	5000-12500	100-1000
SFD-12	1200	1300x5200	50-89	10000-20000	150-1300
SFD-14	1400	1500x5400	60-105	14000-27000	200-1600
SFD-16	1600	1700x6000	70-135	18700-36000	250-2000

SFD Indigo Blue Pigment Dryer Flowchart

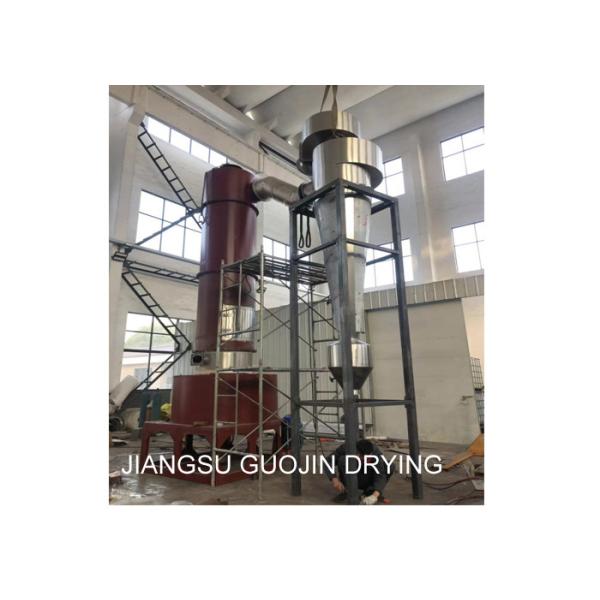

SFD Indigo Blue Pigment Dryer Show
