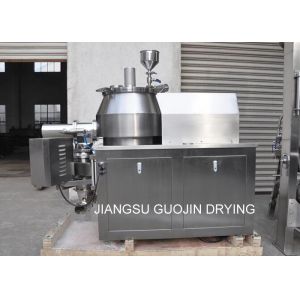

10L 80 Mesh High Shear Mixer Granulator GMP Standard

HSMG Series High Shear Mixer Granulator

HSMG high speed mixer granulator is a high efficiency equipment that can mix different powder materials and granulate granule in one procedure. It is widely used for pharmaceutical industry, foodstuff industry and chemical industry, etc.

Product Features

1. The High speed HSMG series wet type mixing granulator adopts a practical horizontal cylinder structure.

2. The driving shaft is euipped with inflatable seal. While washing, the air can be replaces by water.

3. Fluidized granulating processed is used and the final granules are quite round with high fluidity.

4. Compared with traditional technique, this type of machine can reduce 25% of adhesive and also shorten the drying time.

5. For each batch of material, with 2 minutes dry mixing and 1-4 minutes granulating, the efficiency is 4-5 times higher than that of traditional technique.

6. Dry mixing, wet mixing and granulating are finished inside the same sealed container, which is in conformity with the requirement of GMP.

Product Working Principle

1. The whole process consists of two programs including mixing and granulating.

2. Powder metrical can be charged into the material pan from the conical hopper and continue to rotate in the container under the action of mixing blade once the hoper is closed. In tahe meanwhile, all materials grow up the shapea of liquid bridge under continuous effects of conical wall. Under the action of extrusion, friction as well as crumb by blade and conical tank wall, all material is gradually turn for loosen. At last,while opening the hoper outlet, waterish particles are pushed off under the centrifugal effects of blade.

3. These soft particles are formed not dependent on forced extrusion effects, more exactly; these small and uniform particles are mainly formed after continuous cutting under the similar-liquid state. In all, this machine can realize the mutual transformation between different materials.

Technical Parameters

Model	7/2.5	10	50	100	150	200	250	300	400	600
Productive capacity(kg/batch)	0.3-1	3	15	35	50	60	80	100	135	200
Granules size(mesh)	20-80
Working time(min)	5-7
Container volume(L)	7/2.2	10	50	100	150	200	250	300	400	600
Mixing power(kw)	0.75	2.2	4/5.5	6.5/8	6.5/8	11/14	11/14	13/16	18.5/22	22/28
Cutting power(kw)	0.75	1.1	1.3/1.8	2.4/3	2.4/3	4.5/5.5	4.5/5.5	4.5/5.5	6.5/8	9/11
Mixing speed(r/min)	30-1000	30-600	200/400	200/400	180/270	180/270	180/270	140/220	106/155	80/120
Cutting speed(r/min)	300-3000		1500/3000
Pressure of compressed air(Mpa)	0.3-0.6
Consumption of compressed air(M3/min)	No	0.1	0.11	0.13	0.2	0.25	0.25	0.3	0.4	0.4
Weight(kg)	150	300	400	800	900	1200	1500	1550	1650	1800
Overall dimension(mm)	800*450 *900	1250*550 *1160	1730*750 *1610	1950*750 *1810	1950*750 *1810	2210*880 *2000	2210*880 *2000	2310*1050 *2000	2485*1050 *2050	2585*1400 *2100

Chart of overall dimensions

Product Show
