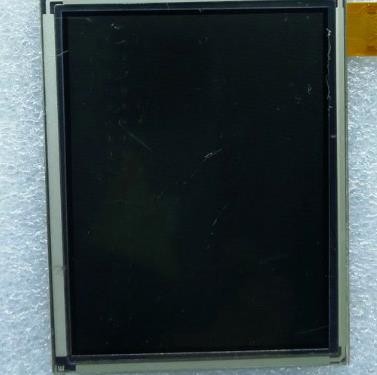

    NLT 4.2" 480×640 WLED RSDS NEC TFT Display 280nits NL4864HC13-01A

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL4864HC13-01A
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW
    Supply Ability : 500PCS
    Delivery Time : 1-2day
    • Product Details
    • Company Profile

    NLT 4.2" 480×640 WLED RSDS NEC TFT Display 280nits NL4864HC13-01A

    NEC NL4864HC13-01A Application Features

    Basic Information :Brand NameModel NameTypeModel Alias
    NL4864HC13-01Aa-Si TFT-LCD , LCM-
    Maximum Ratings :RoHSOperating TemperatureStorage TemperatureVibration Level
    -20 ~ 70 °C-30 ~ 80 °C2.0G (19.6 m/s²)

    NEC NL4864HC13-01A Mechanical Features

    Screen Size :4.2"
    Pixel Features :Pixel NumberPixel FormatDot Pitch (H×V)Pixel Pitch (H×V)
    480(RGB)×640, VGARGB Vertical Stripe0.0455×0.1335 mm0.1335×0.1335 mm [190PPI]
    Mechanical Size :Display Area (H×V)Bezel Opening (H×V)Overall Dimension (H×V)Overall Depth
    64.08×85.44 mm66.5×87.8 mm76.5×99.7 mm3.8 (Typ.) mm
    Outline Features :Form ShapeAspect Ratio (H:V)OrientationShape Style
    Flat Rectangle3:4Portrait type
    Other Spec :MassPanel CoverSurface Treatment
    59.0/61.0g (Typ./Max.)-Clear, Hard coating (3H)

    NEC NL4864HC13-01A Optical Features

    Basic Information :LuminanceWork ModeContrast Ratio
    280 cd/m² (Typ.)TN, Normally White, Transflective200:1 (Typ.) (Transmissive) 15:1 (Typ.) (Reflective)
    Good View atViewing AngleResponse Time
    12 o'clock30/30/30/35 (Typ.)(CR≥10)7/23 (Typ.)(Tr/Td) (ms)
    Dispaly Color :Color Temperature:Support ColorColor Coordinate
    6066K262K (6-bit)X:0.320; Y:0.340
    Performance :3D TechnologyOutdoor VisibilityReflectance
    -Sunlight Readable14% (Typ.)

    NEC NL4864HC13-01A Electronics Features

    Refresh Rate :60Hz
    Reverse Scan :No

      NEC NL4864HC13-01A Backlight Features

      Back-light Features:TypePositionLife(Hours)AmountShapeReplacement
      WLEDEdge light type33K(Typ.)-1 string-
      WLED Electrical :Input VoltageInput CurrentPower Consumption
      23.8/26.2V (Typ./Max.)14/15mA (Typ./Max.)
      Interface Features :WLED Driver StatePhysical TypeInterface Position
      NoIncluded in panel signal interface-

      NEC NL4864HC13-01A Interface Features

      Signal Electrical :Input VoltageInput CurrentPower Consumption
      3.3/10.0/20/-10V (Typ.)(VCC/VDD/VGH/VGL)4.5/13.0/0.15/0.15mA (Typ.)(ICC/IDD/IGH/IGL)150mW (Typ.)
      Interface Features :Signal TypePhysical TypeInterface Position
      RSDS (1 Channel)Connector-
      Interface Detail :Brand NameModel NameAmountPinsPin PitchPin Configuration
      JAEAA03-P050VA21 pcs50 pins0.4 mm

      FAQ:

      Q1: What's the quality of your LCD Panel?


      A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


      Q2: What is your return and refund policy?


      A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


      Q3: How long is the lead time?


      A: The lead time is about 1-3 working days after receipt of payment.


      Q4: How can I get the quotation?


      A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
