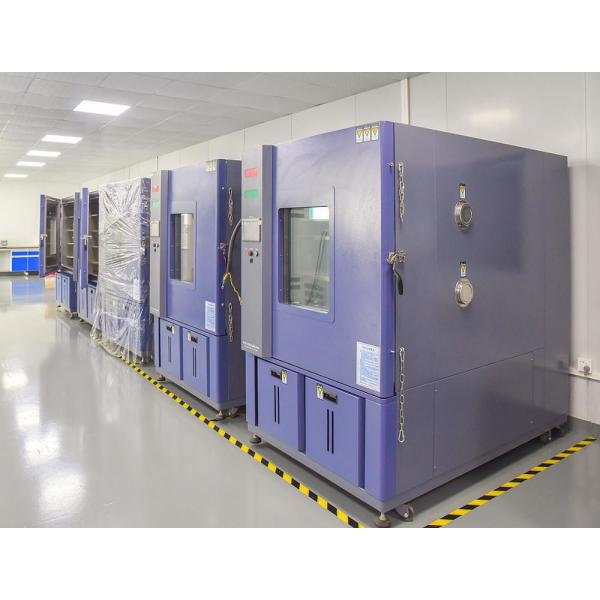

LIYI 150C Explosion Proof Test Chamber , 800L Environmental Test
Systems
LIYI , a 18 years of professional High and Low Temperature
Explosion-proof Test Chamber,Explosion-proof High and Low
Temperature Test Chamber,Battery Explosion-proof High and Low
Temperature Test Chamber,Explosion proofing High and Low
Temperature Test Chamber,Battery Explosion proofing High and Low
Temperature Test Chamber manufacturers
Providing virtual space to simulate the real environment, to verify
the product inspection and R & D results for aerospace, aviation,
electronics, automobile, battery and other products and quality
inspection institutes, research institutes, colleges and
universities and other experimental units. the test chamber is to
shorten the development period. An indispensable right-hand man to
improve product quality and reliability.
Description
Battery Test Chambers can be used for safety testing for compliance
with the UN Recommendations on the Transport of Dangerous Goods
needed for lithium-ion batteries.
Battery Cell Temperature Explosion-proof Test Chamber Battery
Environmental Test Systems can be used for safety testing for compliance with the UN
Recommendations on the Transport of Dangerous Goods needed for
lithium-ion batteries.
Proven test technology in all dimensions:Cells,Modules,Battery
packs,Complete drive units,Battery Management System (BMS).
Characteristics:
1. Battery Cell Temperature Explosion-proof Test Chamber Battery
Environmental Test Systems is composed of the chamber, refrigeration systems, heating systems,
air circulation system and control system.
2. The Battery Cell Temperature Explosion-proof Test Chamber Battery
Environmental Test Systems is made of high quality SUS#304 stainless steel material,the outer
shell adopts A3 steel plate,surface electrostatic spraying.
3. Insulation system uses superfine fiberglass wool or polyurethane
foam so as to ensure the temperature of inside chamber.
4. Temperature and humidity control adopts Korean import TEMI500
programmable touch screen temperature and humidity controller, with
automatic calculation of PID function.
5. Adopts steam humidifying method, automatic water circulation
loop,with functions of automatic filling water.
6. Refrigeration system adopts original France "Tecumseh"
refrigeration unit and full sets of refrigeration parts.
7. Input mode PT100 sensor.
8. The system of heating up, heating down, dehumidifying, and
humidifying can be operated independently so as to reduce the cost
of testing, extend the operating life of the machine and decrease
the failure rate.
9. Powerful multi-wing type air circulation which can ensure even
temperature distribution inside the working chamber.

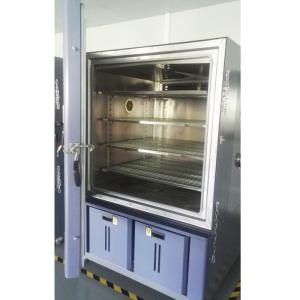

10. With larger transparent viewing window and lighting inside to
observe the test.
11. Door seal adopts silicone rubber material which can avoid aging
and hardening in high and low temperature conditions.
12. Standard configuration with one test hole on the left side of
the chamber for easy testing operation and temperature measurement.
13. With various of safety protection device such as leakage and
outage protection,compressor overpressure protection,overload
fusing protection,audio signal alarm.
Specification:
| Model | LY-280 | LY-2150 | LY-2225 | LY-2408 | LY-2800 |
Inner Size W×H×D(cm) | 40×50×40 | 50×60×50 | 60×85×80 | 60×85×80 | 100×100×80 |
Outside Size W×H×D(cm) | 93×155×95 | 100×148×106 | 117×166×91 | 140×176×101 | 170×186×111 |
| Volume (V) | 80 L | 150L | 225L | 408L | 800L |
| Temp and Hum Range | A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98% |
| Function | Fluctuation | ±0.5°C ±2.5%RH |
| Deviation | ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH) |
Controller Analytical Accuracy | ±0.3°C ±2.5%RH |
| Wind Cycling Way | Centrifugal fan-broadband type forced air circulation |
| Refrigeration Way | Single stage compression refrigeration |
| Refrigerator | French Tecumseh |
| Refrigerants | R4O4A USA DuPont environmental protection refrigerant(R23+R404) |
| Condensing Way | Air-cooled or water-cooled |
| Water Supplying Way | Automatic cycling water supply |
| Standard Accessories | 1 Observe window(double-deck cavity toughened glass), 1 50mm test hole in the left, 1 PL inner chamber lamp, 2 clapboards, 1 bag of wet and dry bulb, 3 fuses, 1 power line. |
During the whole business process, we offer Consultative Selling
service.
1) Customer inquiry process:
Discussing testing requirements and technic details, suggested
suitable products to customer to confirm. Then quote most suitable
price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized
requirements. Offer reference photoes to show the proucts
appearance. Then, confirm the final solution and confirm final
price with customer.
3) Order process:
We offer below business term:
| Accepted Delivery Terms: | FOB, CFR, CIF, EXW, DDP |
| Accepted Payment Currency: | USD, EUR, HKD, CNY |
| Accepted Payment Type: | T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
| Nearest Port: | Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |
4) Production and delivery process:
We will produce the machines according to confirmed PO
requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again
with the machine. Then do own factory calibration or third party
calibration(as customer requirements). Check and test all the
details and then arrange packing.
Deliver the products in confirmed shipping time and inform
customer.
5) Installation and after sale service:
Defines installing those products in the field and providing
after-sales support.
