Stainless Steel Flexible Joint Flex Bellows Auto Exhaust Muffler
Flex Pipe

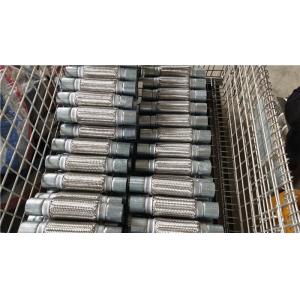

Exhaust muffler flex pipe consists of four layers. The outer and
inner layers are made from the weaving stainless wire. Between
these layers, there is a double layer bellow or sometimes one layer
as request, also made of stainless steel. The necks can be
aluminized or stainless steel , we weld the extension tube on the
pipe, so it'll be easier for customer to install it after getting
it.
Brief introduction of exhaust muffler flex pipe:
| Material |
Stainless Steel 201 / 202 / / 304 / 409
|
| Structure choice |
Bellows + Outer Braid + Nipple/ extension tube Bellows + inner braided liner + external braided liner, Bellows + interlock liner + external wire braided , Bellow + wire mesh
|
| Packing |
Bubble bag + Carton + Woven bag, particular packaging can be
negoiated
|
| Inner Diameter |
1-1/2", 1-3/4, 2", 2-1/4", 2-1/2", 3", 4" Or Oem size
|
| Metric diameter |
38mm, 45mm, 51mm 63.5mm, 57mm 89mm 102mm etc.
|
| Extension pipe thickness |
1.0mm , 1.5mm, 2mm
|
| Advantage |
High flexibility and no smuggling
|
| Price Term |
EXW , FOB , CIF , C&F
|
| Application / Usage |
Tuck, buses, off-road, auto exhaust system like engine, muffler, turbos, waste-gates,
blow-off Valves, industrial equipment etc.
|
| MOQ |
10PCS
|
1.Automobile exhaust system component
2. Installed between engine and muffler
3. decrease vibration and engine noise
4.To compensate displacement and installation tolerances
5. Smooth inner surface to ensure waste gas to convey the back part
6.To Bear load
Specification of Exhaust Muffler Flex Pipe
| Inner Diameter (ID) | Flex Length(L) | With nipple Overall Length(L) |
| 1-3/4” (45mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) |
| 8”(203mm) | 12”(305mm) |
| 10”(254mm) | 14”(356mm) |
| 48mm | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) |
| 8”(203mm) | 12”(305mm) |
| 10”(254mm) | 14”(356mm) |
| 2”(50.8mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) |
| 8”(203mm) | 12”(305mm) |
| 10”(254mm) | 14”(356mm) |
| 54mm | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) |
| 8”(203mm) | 12”(305mm) |
| 10”(254mm) | 14”(356mm) |
| 2-1/4”(57.2mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) |
| 8”(203mm) | 12”(305mm) |
| 10”(254mm) | 14”(356mm) |
| 2-1/2”(63.5mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) |
| 8”(203mm) | 12”(305mm) |
| 10”(254mm) | 14”(356mm) |
| 3”(76.2mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) |
| 8”(203mm) | 12”(305mm) |
| 10”(254mm) | 14”(356mm) |
| Note: Customized size are available |
Packing and delivery of muffler flex pipe
Plastic bag + seaworthy carton
Lead time: 5-8 days if stocks available, otherwise depends on the
purchased quantity.
