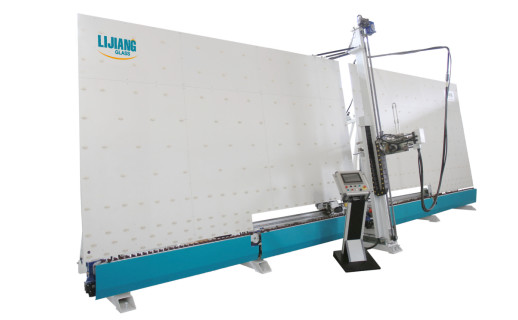

Automatic Sealer Silicone And Polysulfide Sealants Sealing Robot
Machine
Main features for the automatic sealer machine
● Japan Yaskawa servo control system, full automatic and
high-efficiency
● Automatic memory function, no need to input parameters repeatedly
● Automatically repair glass corners with scraper and roller
● Machine has four sections, can storage glass
● Automatically measure glass size and glue depth, adjust sealing
speed
● Adopt timing belt, smooth transfer and accurate position
● Every auto-function is with manual operation
● Can coat double glass, shaped glass, step glass, triple glass
● One set of booster pump controls two groups of sealants
● Automatic timing glue discharging function
● The glue mixing system adopts anti-blocked structure and is easy
to clean
Technical parameter
| Max. glass size | 2000*3000/2500*4000mm |
| Min. glass size | 400*300mm |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | ＜ 35MPa |
| Voltage | 380V 50Hz 3P |
| Power | 15kw |
| Overall dimension | 6700*2500*3000mm/8700*2500*3500mm |
| Weight | 4300kg/5000kg |
Based options for automatic sealing robot :
1. Single / double glue supply system can be selected. The single
glue supply system is equipped with one set of A pump and B pump,
which is suitable for a kind of sealant. Double glue supply system
is suitable for two different kinds of sealant. Polysulfide,
silicone, silicone structural and polyurethane sealants are all
suitable for this machine.

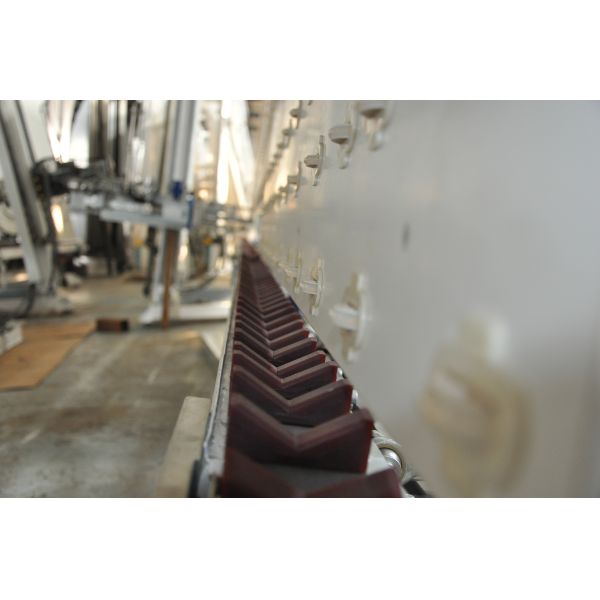

2. Synchronous belt conveyor glass V-block is replaceable
3. Special anti blocking structure Easy to clean
4. Four sections Store 4 pieces of glass
Electrical parameters for the automatic sealing robot
| NAME | ORIGIN | BRAND |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
| CPU | Japan | YASKAWA |
| Low voltage component | Germany | SIEMENS |
| Guideway | Taiwan | HIWIN |
| Switching power supply | Taiwan | MW |
| Sensor switch | Korea | AUTONICS |
| Pneumatic component | Japan | SMC |
| Touch screen | China | GAOSHAN |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
After sales service for the automatic sealing robot
Introduction of the LIJIANG GLASS
Jinan Lijiang Automation Equipment Co., Ltd specializes in the R &
D and manufacturing of automatic insulating glass machinery, with a
registered capital of 20 million RMB. There are nearly one thousand
domestic friendly customers, such as North glass, Xinfuxing,
Yaohua, etc. The products have been exported to Europe, the United
States, the Middle East, Southeast Asia, South America,Romania,
Bulgaria, Span and other countries (about 30 countries) of the
world. Our company mainly has 10 agents, located in Unite States,
South America, Europe, Southeast Asia, the Middle East, South
Korea, etc. At the same time, we have set up branches in New Delhi,
India with local after-sales engineers. Up to now, the export
volume of our products accounts for more than 50% of the total
sales of the company.
