Stainless steel perforated metal mesh /perforated sheet for test
sieve
Description
Perforated Metal is broadly used in Industrial and Architectural
applications such as; oil filters,
grain sifters, sound isolation and ventilation.
The round hole perforation is the most popular type of perforated
pattern. We can cut to size to
your specific requirements.
Perforated metal is descibed by the hole size and the pitch. The
pitch is the distance from the
centre of one hole to the centre of the adjacent holes. All our
perforated sheets are on a
triangular pitch.
Perforated sheets are very useful for guarding and ballustrading
where a strong smooth finish is
required with a small apeture.
1.can be formed easily
2.can be paint or polished
3.easy installation
4.attractive appearance
5.wide range of thicknesses available
6.largest selection of hole size patterns and configurations
7.uniform sound abatement
8.light weight
9.durable
10.superior abrasion resistance
11.accuracy of size
thickness (mm) | Aperture (mm) | hole spacing (mm) | wide (m) | length (m) | punching rate (%) |
| 0.2 | 6 | 2 | 1 | 20 | 44 |
| 0.35 | 5 | 4 | 1 | 20 | 24 |
| 0.45 | 6 | 3 | 1 | 20 | 35 |
| 0.8 | 3 | 3 | 1 | 20 | 19.6 |
| 0.5 | 1 | 1 | 1 | 2 | 19.6 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 |
| 3 | 5 | 16 | 1 | 2 | 19.6 |
| 0.5 | 1 | 1 | 1 | 2 | 19.6 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 |
| 1 | 2 | 2 | 1 | 2 | 19.6 |
| 2 | 5 | 16 | 1 | 2 | 19.6 |
| 0.5 | 1 | 1 | 1 | 2 | 19.6 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 |
| 2 | 4 | 16 | 1 | 2 | 19.6 |
Our perforated metals have been used inAll panels can be customised to suit your requirements
• Sunscreens
• Balustrade panels

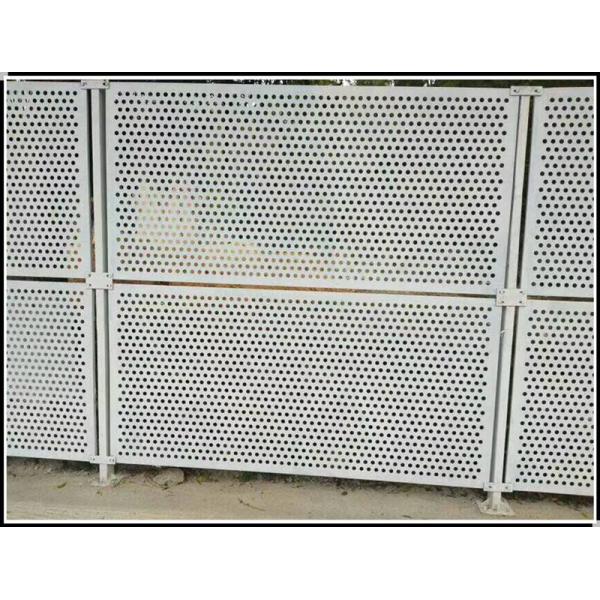

• Fencing and gate infill panels
• Ceiling panels
• Architectural feature panels
• Building facades
• Acoustic wall panels
• Filters
• Shop fitting wall panels
• Custom perforations
Application
