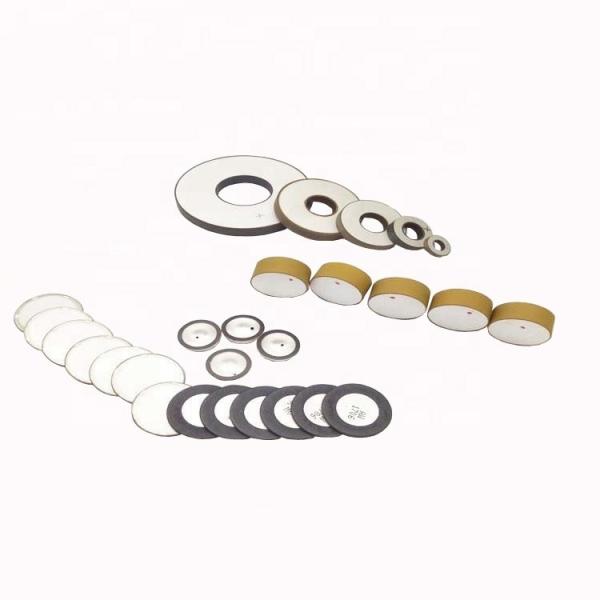

PZT Material Ultrasonic Ceramic Piezo Elements Piezo Ceramic Disc

    Buy cheap PZT Material Ultrasonic Ceramic Piezo Elements Piezo Ceramic Disc from wholesalers

    Buy cheap PZT Material Ultrasonic Ceramic Piezo Elements Piezo Ceramic Disc from wholesalers
    • Buy cheap PZT Material Ultrasonic Ceramic Piezo Elements Piezo Ceramic Disc from wholesalers
    • Buy cheap PZT Material Ultrasonic Ceramic Piezo Elements Piezo Ceramic Disc from wholesalers
    • Buy cheap PZT Material Ultrasonic Ceramic Piezo Elements Piezo Ceramic Disc from wholesalers
    • Buy cheap PZT Material Ultrasonic Ceramic Piezo Elements Piezo Ceramic Disc from wholesalers
    • Buy cheap PZT Material Ultrasonic Ceramic Piezo Elements Piezo Ceramic Disc from wholesalers
    • Buy cheap PZT Material Ultrasonic Ceramic Piezo Elements Piezo Ceramic Disc from wholesalers

    PZT Material Ultrasonic Ceramic Piezo Elements Piezo Ceramic Disc

    Ask Lasest Price
    Brand Name : TAIMI
    Model Number : TM-PZT piezo ceramic
    Certification : ISO9001、ISO14001、IATF16949
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 1000000/month
    Delivery Time : 10~15days
    • Product Details
    • Company Profile

    PZT Material Ultrasonic Ceramic Piezo Elements Piezo Ceramic Disc


    Wholesale High Quality Piezoelectric Disc Pzt Material Ultrasonic Ceramic Piezo Elements

    piezo ceramic disc Product Description

    Piezoelectric ceramic disc materials are electromechanical transducers: They can convert mechanical energy into electrical energy and vice-versa


    Disc Piezo Ceramic Material :

    PZT4,PZT5,PZT8 or other required Piezoelectric Materials

    (If need the piezoelectric material performance list, pls contact us)

    The Applications of Piezoceramic Disc:

    Piezo transducer vibrationUltrasonic SensorFish finder transducer
    Atomizer transducerWall thickness sensorCompression sensor
    Ultrasonic cleaningMaterial stress sensorPiezo expansion sensor
    Ultrasonic medicalpressure sensorBeauty transducer
    Matter dispersionBiomedical probeUltrasonic mixing
    Sonar transducerPiezo electricity harvestingMore other application

    ♥ if don't find what informations you need. Pls check connect us to get more.


    We are always here to support you

    Piezo ceramic disc specifications

    Some Standard Size of Disc Piezo Ceram

    (Size=OD*Thickness) (Qm=Mechanical quality factor) (tanδ(%)=Dielectric dissipation factor )

    SizeThickness Frequency

    ft(MHz)

    		Capacitance
    C(pf)    		Impedance
    Zt(Ω)    		Kt (%)
    16×0.45.0±5%5400±15%≤5≥45
    16×2.11.0±5%1000±15%≤4≥45
    20×1.21.65±5%1180±5%≤2.5≥45
    20×2.01.0±5%1650±15%≤4≥45
    25×0.45.0±5%1280±15%≤4≥45
    25×1.21.65±5%1350±15%≤2≥45
    25×1.02.0±5%5800±15%≤4≥45
    25×2.01.0±5%2700±15%≤4≥45
    28×1.02.0±5%6940±15%≤4≥45
    28×1.71.2±5%3880±15%≤3≥45
    28×21±5%3850±15%≤3≥45
    28×2.01.0±5%3300±15%≤3≥45
    30×3.066.72730±12.5%≤3≥45
    35×3.063.03100±12.5%≤3≥45
    38×6.559.91580±12.5%≤3≥45
    45×3.050.05100±12.5%≤3≥45
    45×3.550.04700±12.5%≤3≥45
    50×3.046.05800±12.5%≤3≥45
    50×3.546.06300±12.5%≤3≥45
    50×5.046.04150±12.5%≤3≥45


    We can customize your required size piezoelectric ceramics as need.

    ♥ If you are interested in our product,

    ♥ Pls just feel free to send us your inquiry.

    ♥ We wil try our best to quote the competitive price for you!



    Certificates




    Piezo ceramic disc packaging & Shipping


    FAQ

    Q: Delivery Time

    A: Based on the order quantity, the goods will be sent out within 2-7 days.


    Q: Payment

    A: T/T,W esternUnion,L/C,Paypal


    Q: Quantity guarantee

    A: All products will have been strictly Quality insepected before packing.


    Q: Shipping

    A: We have strong cooperation with DHL,TNT,UPS,FEDEX,and shipping agent for air and sea.

    give the economic freight according to goods weight.


    Q: Wealth of experience

    A: Professional sercive.choose us,you will do the trade more easily.


    Q: Good Service

    A: Excellent team to offer the efficient and professional reply.


    Q: Technical Problem

    A: Provide Professional Technical Support.
