Wireline Hydraulic Duoble Ram BOP Blowout Preventer Wireline Pressure Control

    Buy cheap Wireline Hydraulic Duoble Ram BOP Blowout Preventer  Wireline Pressure Control from wholesalers

    Buy cheap Wireline Hydraulic Duoble Ram BOP Blowout Preventer  Wireline Pressure Control from wholesalers
    • Buy cheap Wireline Hydraulic Duoble Ram BOP Blowout Preventer  Wireline Pressure Control from wholesalers
    • Buy cheap Wireline Hydraulic Duoble Ram BOP Blowout Preventer  Wireline Pressure Control from wholesalers

    Wireline Hydraulic Duoble Ram BOP Blowout Preventer Wireline Pressure Control

    Ask Lasest Price
    Brand Name : Ruixin
    Model Number : 2.5inch ID 3inch ID 4.06inch ID 5-1/8inch ID
    Certification : API
    Price : USD 2500~
    Payment Terms : T/T
    Supply Ability : 1 set 3 weeks
    Delivery Time : 4-8weeks
    • Product Details
    • Company Profile

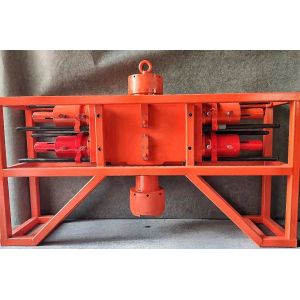

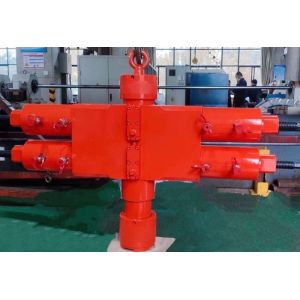

    Wireline Hydraulic Duoble Ram BOP Blowout Preventer Wireline Pressure Control

    Wireline Hydraulic Duoble Ram BOP Blowout Preventer Wireline Pressure Control

    Wireline Pressure Control Wireline Hydraulic Duoble Ram BOP features two sets

    of Ram assemblies and hydraulic actuated system that allow fast,safe and easy operation

    in a remote location. Dual Hydraulic Type 1 is suitable for slickline and braided line operation

    by changing its respective rams.

    Wireline Valve, also known as Blow Out Preventer(BOP), is used as a safet quipment which

    is commonly located between Lubricator and Wellhead/ Christmas Tree. The design incorporates

    Ram bodies with inner seals that allow pressure to be contained within the well once the bodies

    are closed. This allow the pressure above to be bled off while the wire or cable is still intact thereby

    enable repairing and other work to be carried out on equipment above, The design also features

    equalising Valves that are fitted to the main body to allow ecualisation o ubricator and well pressure

    when the operation is to be resumed

    Dual Integral Hydrauic Wireline Valve incorporates an integral top quick union connection to the

    main body. The hydraulic operation features two sets of Ram assemblies and hydraul c actuated

    system that allow fast, safe and easy operation a remote location. This design is suitahle for

    slickline and braided line operation Shear Ram design available on request

    ModelWork PressureBoreWireline / Slickline OD.Control MethodRemarks
    FZ6.3-3535MPa2.5"0.125"Manual/ Hydraulic

    Single

    Ram

    2FZ6.3-3535MPa2.5"7/32"HydraulicDouble Ram
    FZ7.6-3535MPa3"0.125"Manual/ HydraulicSingle Ram
    2FZ7.6-3535MPa3"7/32"HydraulicDouble Ram
    FZ10.2-3535MPa4"0.125"Manual/ HydraulicSingle Ram
    2FZ10.2-3535MPa4"7/32"HydraulicDouble Ram
    FZ6.3-7070MPa2.5"0.125"HydraulicSingle Ram
    2FZ6.3-7070MPa2.5"7/32"HydraulicDouble Ram
    FZ7.6-7070MPa3"0.125"HydraulicSingle Ram
    2FZ7.6-7070MPa3"7/32"HydraulicDouble Ram
    FZ10.2-7070MPa4"0.125"HydraulicSingle Ram
    2FZ10.2-7070MPa4"7/32"HydraulicDouble Ram
    FZ6.3-105105MPa2.5"0.125"HydraulicSingle Ram
    2FZ6.3-105105MPa2.5"7/32"HydraulicDouble Ram
    FZ7.6-105105MPa3"0.125"HydraulicSingle Ram
    2FZ7.6-105105MPa3"7/32"HydraulicDouble Ram
    FZ10.2-105105MPa4"0.125"HydraulicSingle Ram
    2FZ10.2-105105MPa4"7/32"HydraulicDouble Ram

    Welcome to contact us at any time.
