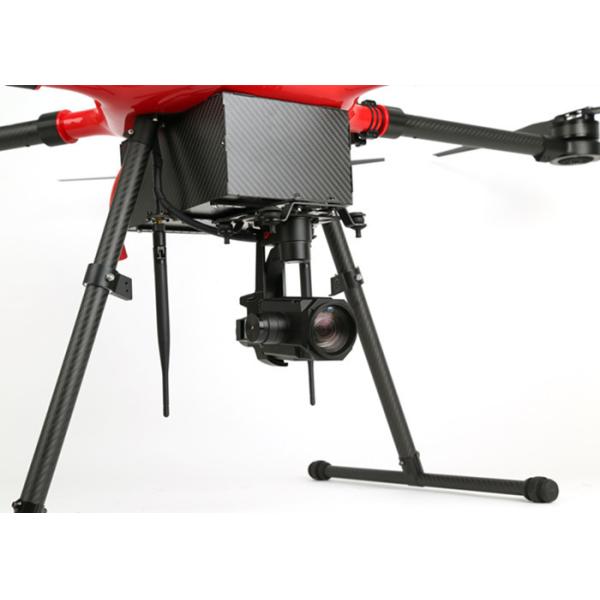

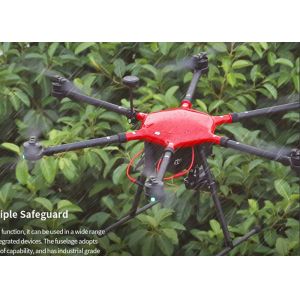

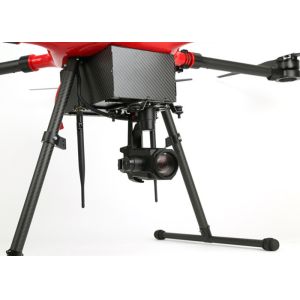

Multi-Purpose Gas Analyzer Firefighting Drones High Brightness
Display Screen
Type MK - A0102
Weight : 500 g
Sound intensity 125dB (distance: 1m)
80dB (distance: 100m)
Effective transmission distance 1000 meters
Anti-howling distance ≥ 20 meters
Input voltage 9~28V
The frequency range is 410~470MHz
4FSK digital modulation mode 12.5khz data and voice 7K60FXW
Receiving distance: 10km (without shielding)
The power of 100 w / 6 Ω power amplifier
Power supply: 12v-25v
Power consumption: 8.4w
Weight: 786g
Size: 136 * 96 * 155mm
Working temperature - 10 ° ~ 45 °
Storage environment - 20 ° to 70 °
Angle jitter + - 0.008 degree
Installation mode: detachable
The controllable range of rotation is pitch + 70 ° to - 90 ° and
heading: ± 160 °
The structural design range is pitch + 75 ° to - 100 ° heading: ±
175 ° and roll + 90 ° to - 50 °
Maximum control speed ＞ pitch: 120 ℃ / S; heading: 180 ℃ / s
Access standard: onvif; gb28181;
Media format: JPEG, video: mp4
Visible camera
Sensor 1 / 2.3 inch progressive CMOS
Focal length: 3.85 ~ 13.4mm
Close range: 1 ~ 3M
The field of view angle is 82 ° to 25 °
Digital zoom 4x
Resolution: 50 Hz: main stream (3840 × 2160@25fps )
60Hz: main stream (3840 × 2160@30fps )
Minimum illumination: 0.1Lux (color)
Fogging electron
Thermal camera
Name parameter
Sensor type: amorphous silicon infrared micro radiometer
The pixel spacing was 17 um
Maximum resolution 640 * 480
Focal length: 25mm
The response band is 8 ~ 14um
Temperature measurement support - 20 ~ 800 ° optional
