    A182 F304H F316H F317 WN Stainless Steel Weld Neck Flange

    Ask Lasest Price
    Brand Name : ST
    Model Number : 013
    Certification : TUV/ISO9000
    Price : 1-9 Pieces US $18.56/piece; >10 Pieces US $16.23/piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500000 pieces/month
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

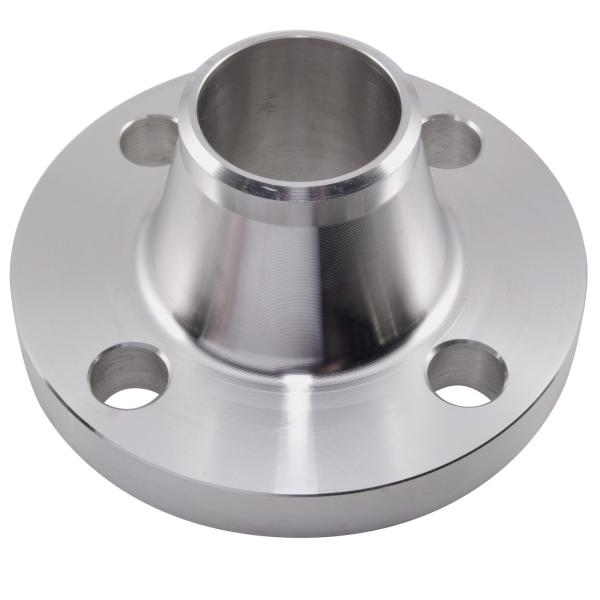

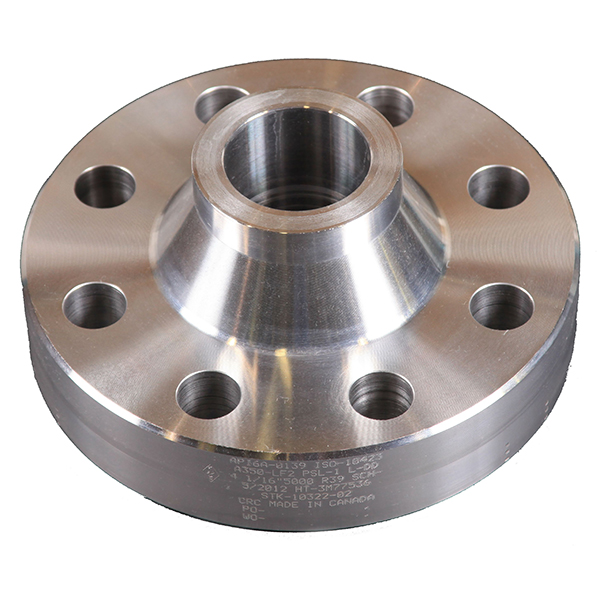

    A182 F304H F316H F317 WN Stainless Steel Weld Neck Flange

    A182 F304H, F316H, F317 WN Stainless Steel Weld Neck Flange


      Weld neck flanges attach by welding the pipe to the neck of the flange. This transfers stress from the flange to the pipe instead. It also reduces the stress concentration from the base of the hub. Weld neck flanges are often used for applications where high pressure is a factor. The inside diameter of the flange is designed to match the pipe's inside diameter. Weld Neck Pipe flanges with a hub have published specifications that range from 1/2" thru 96". Our company provides these in all material grades, specifications and sizes.


    Product Description


    Stainless Material304,304L,316,316L,316Ti,347(H),317(L),321,310(S),904L
    Duplex Material2205,F51,S31803,2507,F53,S32750,S32760
    Alloy MaterialASTM B366, UNS N04400,N08800,N08825,N06625,C276,ATSM 182 F5,F9,F11,F22
    Size1/2"-69"(DN10-DN300)
    FacingRF,FM,M,TG,RF,FF,RTJ
    TypeWN,SO,SW,TH,BL,PL,PR,BL(S)
    Pressure0.25MPA-25MPA,DIN Pn 6, Pn 10, Pn16, Pn25, Pn40 and Pn64
    StandardASME,MSS,DIN,JIS,API,GOST,BS,GB
    SealRubber,EPDM,Silicon,NBR,FPM
    Wall thicknessclass 150; class 300; class 600; class 900, PN
    ApplicationConstruction, Industrial Material
    HS CODE:

    730791


    Materials of WN Flanges


      The Weld neck flanges are available across various materials. These materials will have to be as per the Standards set. The materials also should be as per the quality specified by the ASTM or ASME standards.

      However, the thickness and the inner diameter of the flange will be as per the size of the pipe for which this weld neck flange is being made.

      Talking of the materials, Carbon alloy is a popular choice of material used to make these flanges since they are also resistant to extreme temperature. It is available in materials of ASTM A 181, and ASTM A 105. The flanges are available in various grades like ASME B16 47 ‘A’ Series, and ‘B’ Series to suit the needs of the clients and the industry.

      Other than this material, Weld neck flanges are also in Stainless steel. The flange is made of ASTM A182, F304, 316L, 347H, 310S, ASME B16 5, and comes in a duplex steel finish.

      The duplex steel material of UNS S31803 is also in use. Besides stainless steel, the weld neck flange is available in various other materials like Carbon alloy and nickel among others.

      The Nickel alloy weld neck flange is available in the Inconel 600 and 625, Hastelloy C22, C276 and other such materials.


    Products Show


    Quality A182 F304H F316H F317 WN Stainless Steel Weld Neck Flange for sale
