3000kg/Batch 240t/H Asphalt Mixing Plant Road Construction Machinery

    Buy cheap 3000kg/Batch 240t/H Asphalt Mixing Plant Road Construction Machinery from wholesalers

    Buy cheap 3000kg/Batch 240t/H Asphalt Mixing Plant Road Construction Machinery from wholesalers
    • Buy cheap 3000kg/Batch 240t/H Asphalt Mixing Plant Road Construction Machinery from wholesalers
    • Buy cheap 3000kg/Batch 240t/H Asphalt Mixing Plant Road Construction Machinery from wholesalers

    3000kg/Batch 240t/H Asphalt Mixing Plant Road Construction Machinery

    Ask Lasest Price
    Brand Name : XDEM
    Model Number : RD240
    Certification : CE ISO
    Price : USD80000-100000
    Supply Ability : 500 sets per month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    3000kg/Batch 240t/H Asphalt Mixing Plant Road Construction Machinery

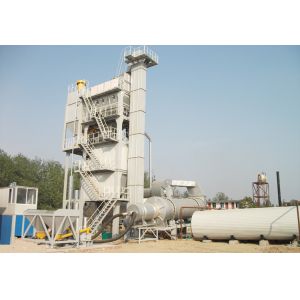

    XDEM RD240 240TPH not used Stationary Hot Mix Asphalt Mixing Plant

    • Mixer capacity: 3,000kg
    • Oil consumption: 5 to 7kg/t
    • Novel structure, reasonable layout, accurate proportioning and well environment protection
    • Adopts imported parts such as German SEW motor reduction and Italian energy EB oil burners
    • Filtering bag material adopts American Nomex punched felt
    • Cylinder and pneumatic components adopts German Festo products
    • Main bearing components adopts Swedish SKF with high accuracy
    • Adopts two-stage dust filtering, dust concentration is lower than 100mg/Nm3
    • Modularization design, easy to transport and install
    • Average working time without failure is longer than 160 hours
    • Optional coal burning system and economical for clients
    • Adopts two filler silos, new and recycled filler can be added proportionally design, cable layout and transportation project for free

    Technical SpecificationRD240
    Rated capacity240t/h
    Cold hopper quantity5
    Cold hopper volume10m³
    Standard burnerOil burner
    Oil Consumption6.5kg/t
    Screen5layers
    Mixer capacity3000kg/batch
    Powder temporary storage capacity0.7m³
    New filler silo40m³
    Old filler silo25m³
    Finished warehouse capacityOptional
    Asphalt tank3×50 m³
    Heavy oil tanks2×50m³
    Light oil tanks1×10m³
    hot oil stove7.5X104
    The total installedpower621.92kW
    Dimension42m×30m×18m


    About our company

    Our company is one of the leading companies in asphalt and concrete equipment technology, support and service in China.

    Our complete product lines include:
    Stationary asphalt mixing plant / mobile asphalt mixing plant / continuous asphalt mixing plant/ concrete mixing plant / mobile concrete mixing plant / concrete mixer / coal burner / other accessories.

    Our factory is located in the center of Henan Province, covering an area of more than 106,000 square meters of the office space.

    Founded in 2002, we have become one of the most reliable partners of construction projects at home thorough ongoing technical investment. Our asphalt mixing plants and concrete mixing plants have been used in highways, high-grade highways, urban roads and airport construction and got a high reputation for their excellent performance.

    Today we hold 18 patents, which owns to the concerted efforts of our employees including R&D team, marketing team and production & procurement team.

    Our asphalt plants and concrete plants have got CE, GOST and ISO9001 certifications.

    Along with the high-quality products and genuine spare parts, we focus on providing better services. Now, we have a professional service group for our global customers. We dispatch our service personnel all over the world to help set-up asphalt or concrete plants and train operators.

    We will continue to strive for new technology and better solutions, while serving our customers with first-class products and excellent services.
