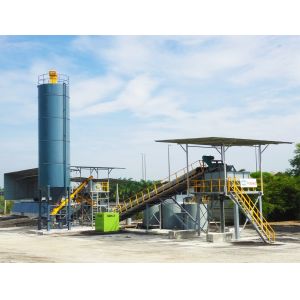

    500t/H 144kw Wet Batch Concrete Plant Road Construction Machinery

    Ask Lasest Price
    Brand Name : XDEM
    Model Number : WCB500
    Certification : CE ISO
    Price : USD80000-100000
    Supply Ability : 500 sets per month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    500t/H 144kw Wet Batch Concrete Plant Road Construction Machinery

    WBC500 500TPH Stabilized Soil Mixing Plant

    XDEM Roady WCB500 500TPH 144kw Stabilized Soil Wet Mixing Plant

    Features of 500t/h cement stabilized soil mixing plant

    1. It adopts modular design and is easy to transport. And batching system adopts frequency electronic weighing to make accurate weighing.

    2. Filler supply system equips dual dust removal system and constant flow bin, which makes the cement weighing more accurate and unpolluted.

    3. It adopts double continuous shaft mixer, featuring chain drive, mixing evenly and easy maintenance.

    4. Manual and automatic control system can be options. IPC ensures the safe running of the plant.

    Model WBC500
    Productivity Capacity(t/h) 500
    Total power(kw) 144
    Aggregate Storage(m³) 8×5
    Filler Storage(m³) 70
    Measurement methods (optional) Electronic measurement
    Discharge Height(m) 3.6
    Mixed Material Storage Silo(m³) 8.5


    Technical parameters of cement stabilized soil mixing plant

    Model number (Y)WBC200 (Y)WBC300 (Y)WBC400 WBC500 WBC600 WBC700 WBC800
    Rated output(T/H) 200 300 400 500 600 700 800
    Installed power(KW) 71 88 120 140 148 168 191
    Aggregate type 3 3 4 4 5 5 6
    Feed particle size ≤45 ≤45 ≤45 ≤60 ≤60 ≤60 ≤60
    Finished-Product Silo capability
    (M3)
    4 4 7 7 7 8 8
    Measuring accuracy Aggregate ±3% ±3% ±3% ±3% ±3% ±3% ±3%
    Cement ±1.5% ±1.5% ±1.5% ±1.5% ±1.5% ±1.5% ±1.5%
    Water ±1.5% ±1.5% ±1.5% ±1.5% ±1.5% ±1.5% ±1.5%
    Measuring Aggregate Electronic belt scale
    Cement Electronic screw scale
    Water Flow meter Flowmeter Flowmeter Flowmeter Flowmeter Flowmeter Flowmeter
    Occupied area(mxm) 35x19 35x19 46x22 48x22 52x22 52x26 58x29
