NJP Series Full Automatic Capsule Filling Machine, Automatic
Capsule Filler
The machine designed to meet the volume-produce on the basis of
model NJP-Series automatic capsule filling machine. Besides the
function that model NJP-Series possess, it also has the lifting
mechanism for easy cleaning. It saves the cost and manpower for the
enterprise that need volume-produce.
Technical Parameters
Machine Model | NJP-200 | NJP-400 |
Max. Output | 12000 Capsules/H | 24000 Capsules/H |
Capsule Size | Suitable for filling capsule size 00#-5# Supro/safefy capsule
size:A-E (need to exchange the spare parts/moulds accordingly) |
Dosage Type | Powder/Pellet/Tablet |
Power Supply | 380V 50HZ 3.7KW (Can be made according to the client`svoltage
standard) |
Noise Index | Less than 75dBA |
Machine Size/N.W. | 920mm x 800mm x 1900mm Net Weight: 950KG |
Packing Size/G.W. | 1600mm x 1000mm x 2150mm Gross Weight:1200KG |
Featurs
1.It has been improved the inner design turret, and imports beeline
bearings for each machine from Japan directly, so that it can be
sure a longer usage-life and precision of machine.
2. The working station cam runs under the good lubricating
condition, and maintains the inner lubrication of cam slot to a
full extent, increasing the pressure pulverization oil pump, thus
extends the operation life of the spare parts.
3. Single movement for both upper and lower segments with two-lip
seal provide a much better sealing performance.
4. It is controlled by the computer, has a stepless timing with the
frequency-conversion, the numberal showing makes an easy operation
and clear appearance.
5.The multi-bore dosing brings a precision dosage (it is controlled
around ±3.5%); The capsule qualified rate is higher than 99%. It
can be filled with the Chinese traditional medicine and the Western
medicine.
6. It has a protector equipment for the operator and the machine,
it has an automatic pause equipment when it is lack for the
material, It has steady and safe working, it is the best choice for
the hard capsule made factories
Service Commitment
Product Quality
All products are guaranteeded for one year, if any problems happen
in guarantee period.our company will maintain for free.
Spare Part Replacement
First mold for free,more than 50% discount if more order.
Technical Service
We can provide design, installation and debugging services or
remote maintanance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest
port,save time and cost.
Detail Product Information
Provide picture,video,instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
Machine Details

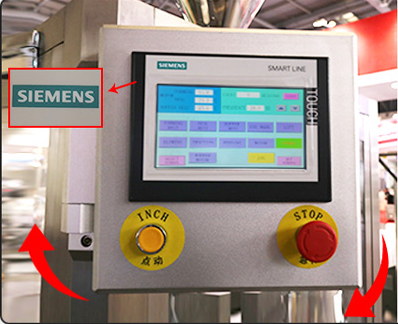

1.Siemens PLC control
Movable German Siemens touch screen, more intelligent and
convenient to operate
2.Design of drawing andclamping slotfor filling rod
The design of pulling chutefor filling rod can save 60%time by
replacing various types offilling rod.
3.Metering device
Nut-type adjustingmetering device,convenient, fast and accurate.
4.Vibrating feeder
Pneumatic adjustablevibration feeder cansolve the problem of
material blanking with poor fluidity
5.Material recycling bin
304 stainless steelmaterial recycling bin,convenient for
rawmaterial recycling to saving costs
6.New patent for filling mechanism
The filling mechanismobtains the national new patent, adopts
three-dimensional adjustment.the adjustmentvolume is precise
andquick,add the powder recoverydevice, the recycling rate is 100%.
7.Sowing and safety control switch
Sowing automatic control,when the machine is running, the personnel
are completely isolated.
8.Double sealing device
Capsule suction, capsuleoutlet,locking and waste rejection
adoptdouble sealing dvice--NBR sealingrubber and SIL silicone
rubbersealing ring, which effectivelysolves the problem of
inoperation.
9.The cam(segmentation)
The segmentation adopt German Cai Si 3seconds(Zeiss)
opticaldividing head indexing, highloading precision, the error
isless than or equal to 3%.
Applications
Pharmaceutical, medicine, and chemicals (powder, Pellet, granule,
pill),also can be used to fill vitamin, foodstuff and animal drug,
etc.
