Good Quality Factory Price 24Core 48Core SM G652D Single-Sheath All-Dielectric ADSS Aerial Fiber Optic Cable

    Buy cheap Good Quality Factory Price 24Core 48Core SM G652D Single-Sheath All-Dielectric ADSS Aerial Fiber Optic Cable from wholesalers

    Buy cheap Good Quality Factory Price 24Core 48Core SM G652D Single-Sheath All-Dielectric ADSS Aerial Fiber Optic Cable from wholesalers
    • Buy cheap Good Quality Factory Price 24Core 48Core SM G652D Single-Sheath All-Dielectric ADSS Aerial Fiber Optic Cable from wholesalers
    • Buy cheap Good Quality Factory Price 24Core 48Core SM G652D Single-Sheath All-Dielectric ADSS Aerial Fiber Optic Cable from wholesalers
    • Buy cheap Good Quality Factory Price 24Core 48Core SM G652D Single-Sheath All-Dielectric ADSS Aerial Fiber Optic Cable from wholesalers
    • Buy cheap Good Quality Factory Price 24Core 48Core SM G652D Single-Sheath All-Dielectric ADSS Aerial Fiber Optic Cable from wholesalers

    Good Quality Factory Price 24Core 48Core SM G652D Single-Sheath All-Dielectric ADSS Aerial Fiber Optic Cable

    Ask Lasest Price
    Brand Name : Jiqian
    Model Number : ADSS -24B1
    Certification : ISO 9001 FCC CE RoHS
    Price : 338
    Payment Terms : L/C, T/T,Alipay
    Supply Ability : 4500km per month
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    Good Quality Factory Price 24Core 48Core SM G652D Single-Sheath All-Dielectric ADSS Aerial Fiber Optic Cable

    Good Quality Factory Directly Sell 24Core 48Core SM G652D Single-Sheath All-Dielectric ADSS Aerial Fiber Optic Cable

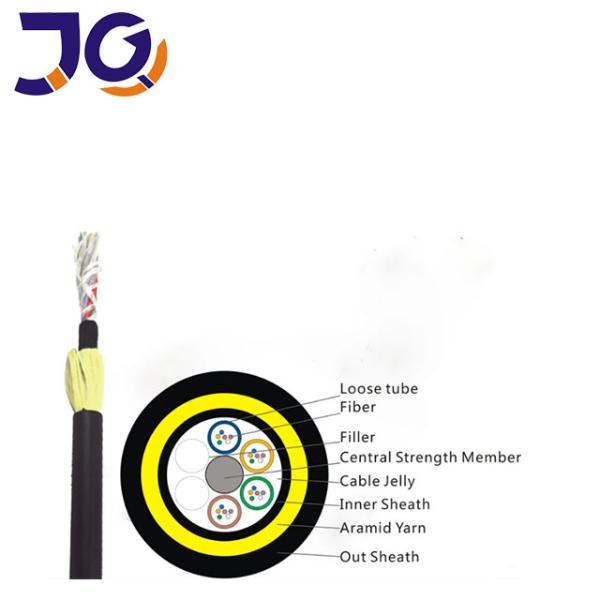

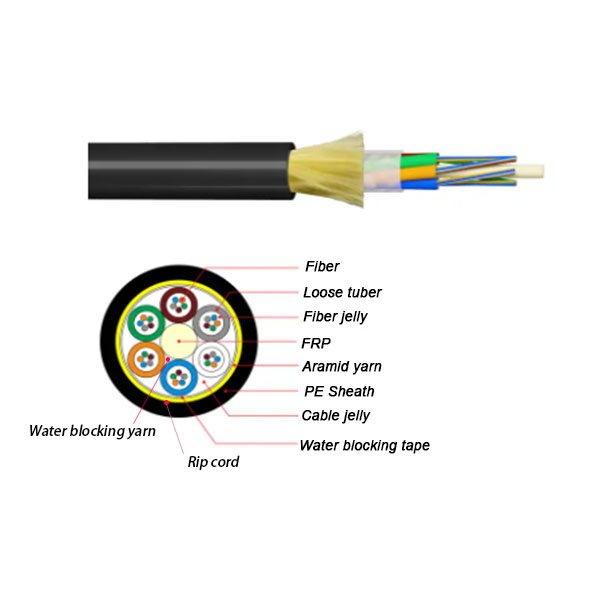

    ADSS is one kind of loose tube stranded cable. 250μm's fibers are positioned in the loose tube which is made of high modulus plastics. The tubes are filled with a water-resistant filling compound. And we use the FRP(fiber reinforced plastic) as the central strength member. The loose tube with the fibers and the FRP are stranded together first, and then we use the PE sheath and the aramid yarn to protect the fibers. Because of the structure, ADSS cable have a very excellent performance during the storage, oprating and using.


    Fiber G652D parameter:


    ItemUnitSpecification
    Fiber TypeG.652D
    Mode field diameter1310nmmm9.2±0.4
    1550nmmm10.4±0.8
    Cladding diametermm125.0±1
    Cladding non-circularity%1.0
    Core/cladding concentricity errormm0.5
    Coating diametermm245±5
    Coating non-Circularity%6.0
    Coating/cladding concentricity errormm12.0
    Cable cut-off wavelengthnm1260
    Attenuation Coefficient1310nmdB/km0.36
    1550nmdB/km0.22
    Proof stress levelkpsi≥100

    Dimensions of Cable Constructions

    Fiber countStructureFibers per tubeLoose tube diameter(mm)CSM central strength member(mm)Nominal Thickness of outer jacket (mm)Cable diameter(mm)Cable net weight (kg/km)
    121+662.02.01.8±0.29.8±0.280
    241+662.02.01.8±0.29.8±0.280
    481+6122.02.01.8±0.210.0±0.285
    721+6122.02.01.8±0.210.5±0.388
    961+8122.02.0/3.41.8±0.211.8±0.3123

    Certification



    Company profile:

    1.Located in Guangzhou China

    2.12 years experiance of producing fiber optic cable
    3.CE/ROSH/FCC/ISO9001 Certifications
    4.Exporting fiber optic cable to all over the world

    FAQ:

    Q1.What is your terms of packing?
    A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements

    Q2. What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
    before you pay the balance.

    Q3. What is your terms of Trade?
    A: EXW, FOB, CFR, CIF

    Q4. How about your delivery time?
    A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
    on the items and the quantity of your order.

    Q5. Can you provide OEM or ODM
    A: Yes


    Q6. What is your sample policy?
    A: We provide FREE sample if we have them in stock

    Q7. Do you test all your goods before delivery?
    A: Yes, all of cables have to be tested before delivery

    Q8: How do you make our business long-term and good relationship?
    A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
