    Steel Platform Dragged Cable Electric Transfer Cart 10 Ton

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPT
    Certification : CE SGS ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 set/sets per year
    Delivery Time : 40-50 days as usual delivery,50-60days for urgent delivery
    • Product Details
    • Company Profile

    Steel Platform Dragged Cable Electric Transfer Cart 10 Ton

    10 Ton Transfer Trailer Cable Power, Custom Manufacture Flat Carts On Rails
    Working Principle
    10 Ton Transfer Trailer Cable Power, Custom Manufacture Flat Carts On Rails----it conducts AC380v directly into the electrical control system of the motorized transfer trailer to start, stop, go forward backforward and so on.The cart is powered by dragged cable which is laid on the ground. the cable line is placed between the two rails. The operation system is low voltage 36v power.

    The cable powered transfer trailers transportation can be applied in the environment such as severe environment,anti-explosive, high temperature, etc. Simple structure and low cost make the trailer popular for workshop transportation. The cable powered transfer trailers transportation can be applied in the occasion with any loading capacity and high using frequency. If the running distance is beyond 50m, the cable powered transfer cars transportation needs to install cable arranger to help with cable rolling. The max running distance is up to 200-400m.


    Technique Parameter of KPT Series Industrial Motorized Carts / Rail Wagon Platform For Die Transportation
    ModelKPT-2tKPT-5tKPT-10tKPT-16tKPT-20tKPT-25tKPT-30tKPT-40tKPT-50tKPT-63tKPT-80tKPT-100tKPT-150t
    Rated Load25101620253040506380100150
    Table sizeLength(L)20003500360040004000450045005000550056006000650010000
    Width(W)1500200020002000220022002200250025002500260028003000
    Height(H)4504505005005506006006506507508008501200
    Wheel Base1200250026002800280032003200380042004300470049007000
    Rail Inner Gauage1200143514351435143514351435143514351435180020002000
    Wheel Diameter270300300350350400400500500600600600600
    Wheel Quantity4444444444448
    Ground Clearance50505050505050505075757575
    Running Speed25252520202020202020202018
    Motor Power0.81.51.52.22.5345.55.57.57.51115
    Max Wheel Load14.425.842.664.577.794.5110.4142.8174221.4278.4343.8265.2
    Reference Weight2.33.33.855.566.37.27.610.312.113.926
    Recommended Rail ModelP15P18P18P24P24P38P38P43P43P50P50QU100QU100

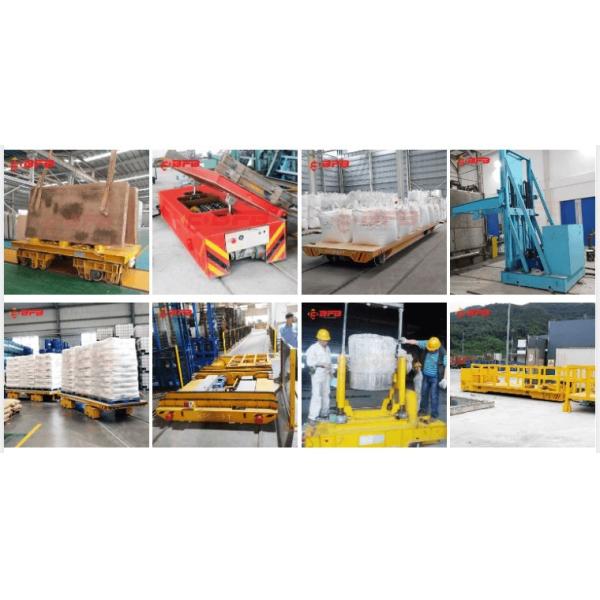

    Our Customer
